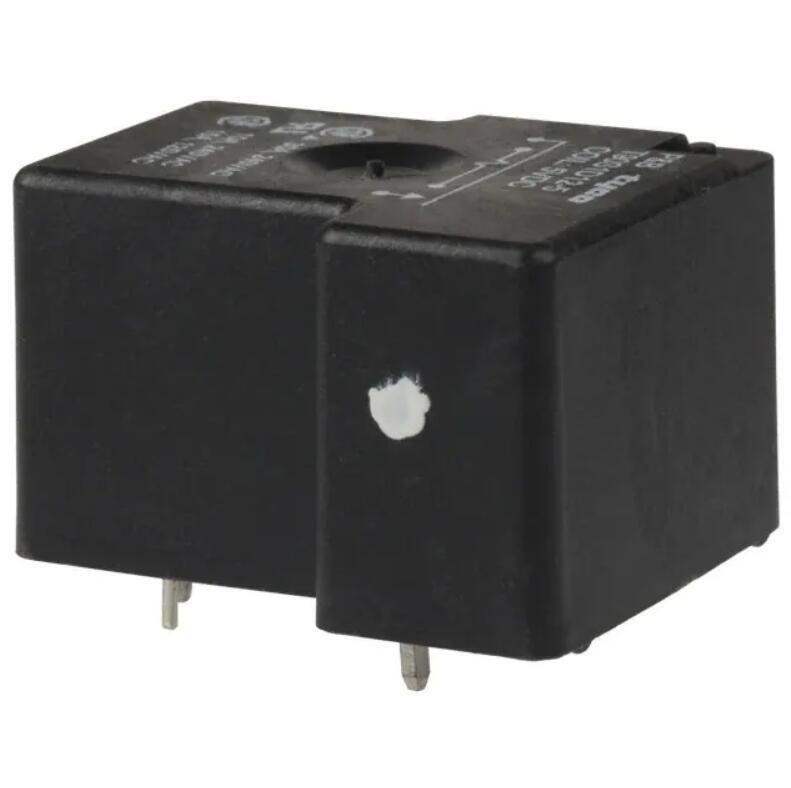

T90S5D42-24TE Connectivity Potter & Brumfield Relays
Same model may have multiple batches, images only for reference.

T90S5D42-24

Part No T90S5D42-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 20A 24V
Datasheet
T90S5D42-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1196858-T90S5D42-24
Win Source Part Number Cross
Manufacturer TE Connectivity Potter & Brumfield Relays
Category Relays Power Relays, Over 2 Amps
Series T90
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20 A
Ultra Librarian 3D Model Ultra Librarian T90S5D42-24 CAD Model

Description

The TE Connectivity Potter & Brumfield T90 is a SPDT power relay with a coil voltage of 24VDC.

  • Relay Type: SPDT Power Relay
  • Coil Voltage: 24VDC
  • Contact Rating: 20A
  • Mounting: Through-hole
  • Packaging: Bulk
  • Status: Obsolete
  • Manufacturer: TE Connectivity Potter & Brumfield
