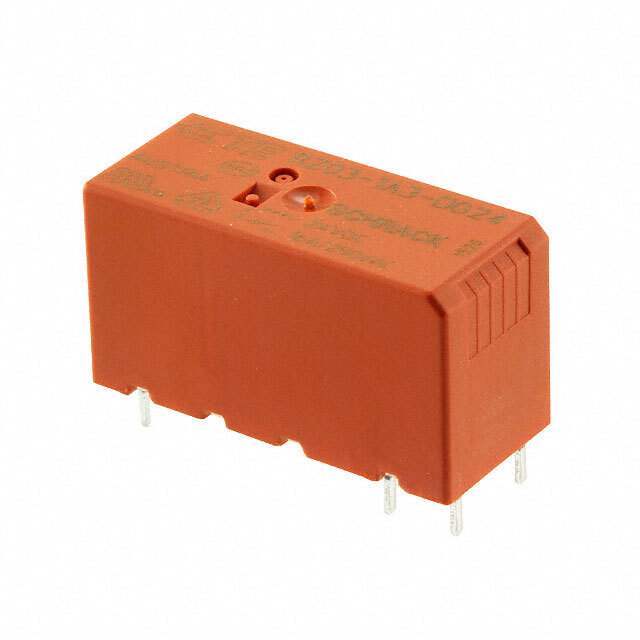

RZ03-1A4-D024 TE Connectivity Potter & Brumfield Relays
Same model may have multiple batches, images only for reference.

RZ03-1A4-D024

Part No RZ03-1A4-D024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203012-RZ03-1A4-D024
Manufacturer TE Connectivity Potter & Brumfield Relays
Category Relays -Power Relays, Over 2 Amps
Series RZ, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Operating Temperature -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Ultra Librarian 3D Model Ultra Librarian RZ03-1A4-D024 CAD Model

Description

TE Connectivity Potter & Brumfield Relays presents the 1203012, a power relay from the RZ and SCHRACK series.

  • Type: General Purpose Relay
  • Coil Voltage: 24VDC
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Through Hole
  • Contact Material: Silver Nickel (AgNi)
  • Product Status: Active
