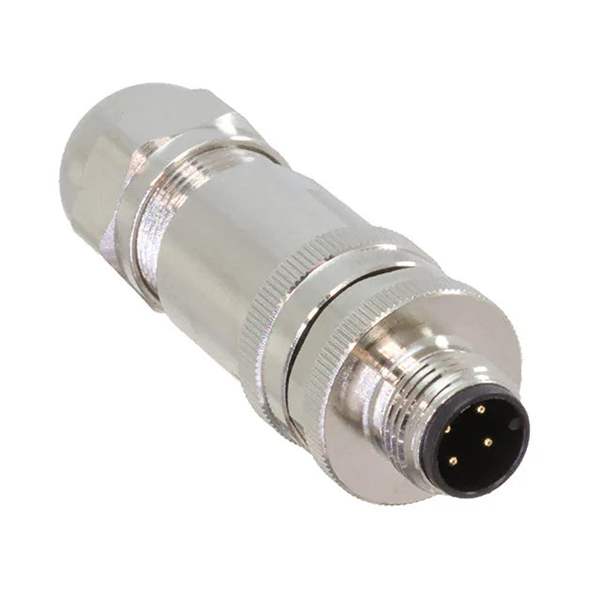

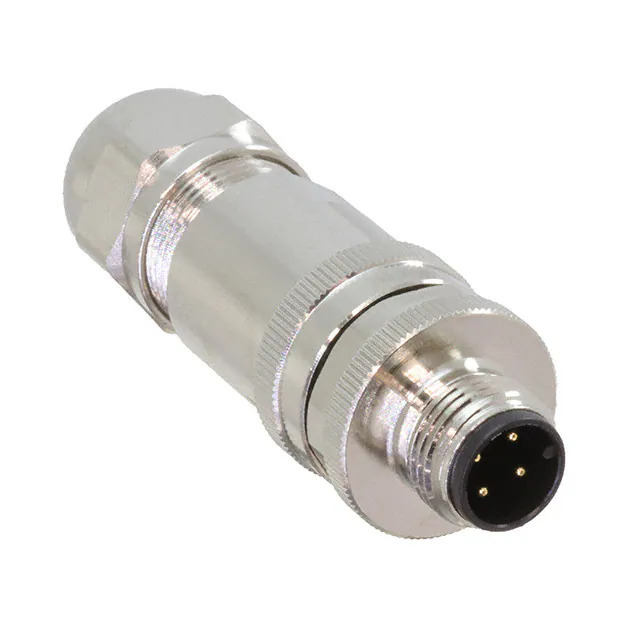

T4111012041-000 TE Connectivity
Same model may have multiple batches, images only for reference.

T4111012041-000

Part No T4111012041-000
Manufacturer TE Connectivity
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 4POS GOLD SCREW / 4 Position Circular Connector Receptacle, Male Pins Screw
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series M12
Package Bulk
Product Status Active
Connector Type Receptacle, Male Pins
Number of Positions 4
Shell Size - Insert M12-4
Shell Size, MIL -
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Termination Screw
Fastening Type Threaded
Orientation A
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating -
Features Backshell
Shielding Shielded
Current Rating (Amps) 4A
Voltage Rating 250V
Cable Opening 0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Temperature Range - Operating -40°C ~ 85°C
Backshell Material, Plating Brass, Nickel
Contact Material Zinc Alloy
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insert Material Polyamide (PA), Nylon
Applications Industrial
Base Product Number T41110
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1366094-T4111012041-000
Ultra Librarian 3D Model Ultra Librarian T4111012041-000 CAD Model

Description

The TE Connectivity AMP Connectors M12 is a circular connector assembly designed for industrial applications.

  • Manufacturer: TE Connectivity AMP Connectors
  • Product Series: M12
  • Connector Type: Receptacle
  • Number of Positions: 4
  • Fastening Type: Threaded
  • Shielded: Yes
  • Ingress Protection: IP67
  • Shell Material: Brass
  • Shell Color: Silver
  • Shell Finish: Nickel
  • Contact Material: Zinc Alloy
  • Contact Finish Thickness: 3.00µin (0.076µm)
  • Temperature Range: -40°C to 85°C
  • Voltage Rating: 250V
  • Product Status: Active
