Same model may have multiple batches, images only for reference.

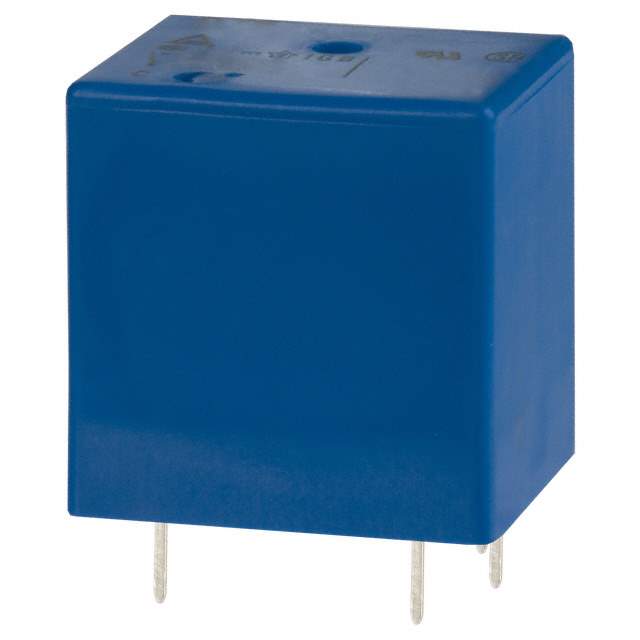

SRUDH-SH-124DM1 Real Image
Same model may have multiple batches, images only for reference.

SRUDH-SH-124DM1

Part No SRUDH-SH-124DM1
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 12A 24V
Datasheet
SRUDH-SH-124DM1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 15mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 12A
Switching Voltage 240VAC, 28VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class A, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 1.6 kOhms
Temperature Range - Operating -30°C to 80°C
Win Source Part Number 212108-SRUDH-SH-124DM1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SRUDH-SH-124DM1 CAD Model

Description

The TE Connectivity Potter & Brumfield SRUDH-SH-124DM1 is a general-purpose, non-latching relay with a SPST-NO (1 Form A) contact form.

  • Coil Voltage: 24VDC
  • Contact Rating: 12A
  • Switching Voltage: 240VAC, 28VDC - Max
  • Temperature Range: -30°C to 80°C
  • Mounting: through-hole package
  • Ideal For: use in various applications such as power supplies, lighting control, and other electronic devices that require reliable switching.
