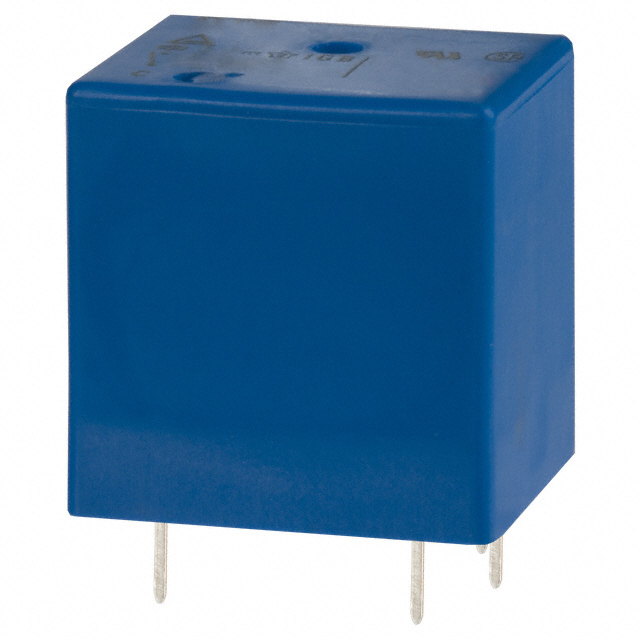

Same model may have multiple batches, images only for reference.
SRUDH-SH-124DM1,000 TE Connectivity
Same model may have multiple batches, images only for reference.

SRUDH-SH-124DM1,000

Part No SRUDH-SH-124DM1,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 12A 24V
Datasheet
SRUDH-SH-124DM1,000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 15mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 12A
Switching Voltage 240VAC, 28VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class A, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 1.6 kOhms
Temperature Range - Operating -30°C to 80°C
Win Source Part Number 129049-SRUDH-SH-124DM1,000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SRUDH-SH-124DM1,000 CAD Model

Description

TE Connectivity Potter & Brumfield Relays 129049-SRUDH-SH-124DM1,000 is a general-purpose non-latching relay with a contact form of SPST-NO (1 Form A).

  • Insulation: class A
  • Sealed: fully sealed
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.6 kOhms
  • Coil Current: 15mA
  • Contact Rating (Current): 12A
  • Switching Voltage: 240VAC and 28VDC
  • Turn-On Voltage (Max): 18VDC
  • Turn-Off Voltage (Min): 1.2VDC
  • Operating Temperature: -30°C to 80°C
  • Mounting Style: through-hole
  • Packaging: tube/rail
  • Suitable for: use in various applications, including industrial control, HVAC, and lighting control.
