Same model may have multiple batches, images only for reference.

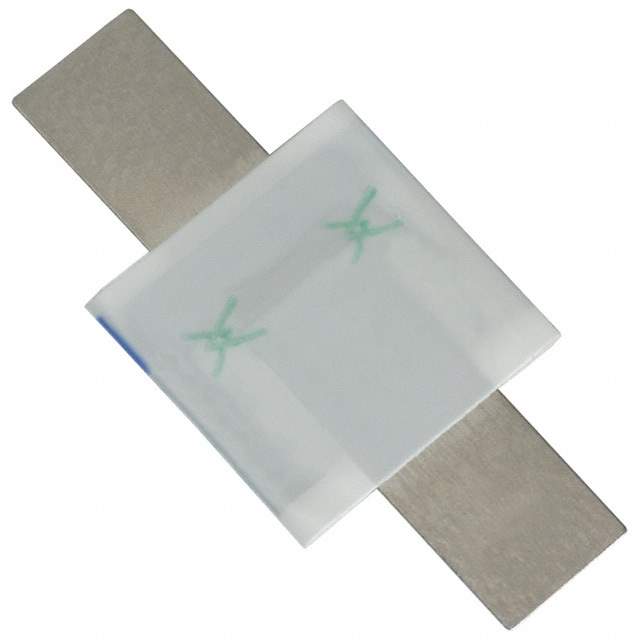

SRP420F Real Image
Same model may have multiple batches, images only for reference.

SRP420F

Part No SRP420F
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Description PolySwitch Resettable Device Short Form Catalog
Datasheet
SRP420F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Current Rating (Max) 100 A
Voltage Rating Max 30V
Agency Approvals CSA/TUV/UL
Hold Current 4.2 A
Trip Current 7.6 A
Initial Resistance (Min) 0.012 Ohm
Initial Resistance (Max) 0.024 Ohm
Power Dissipation (Typ) 2.9(MAX) W
Trip Time (Max) 6@20A s
Wire Form Not Required
Power Dissipation 2.9 W
Win Source Part Number 047245-SRP420F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SRP420F CAD Model

Description

The TE Connectivity electronic component with Win Source Part Number 047245-SRP420F is a medium popularity product with a balanced supply and demand status.

  • Maximum Current Rating: 100A
  • Maximum Voltage Rating: 30V
  • Initial Resistance (min): 0.012 Ohm
  • Initial Resistance (max): 0.024 Ohm
  • Agency Approvals: CSA/TUV/UL
  • Suitable for: use in various industrial applications
