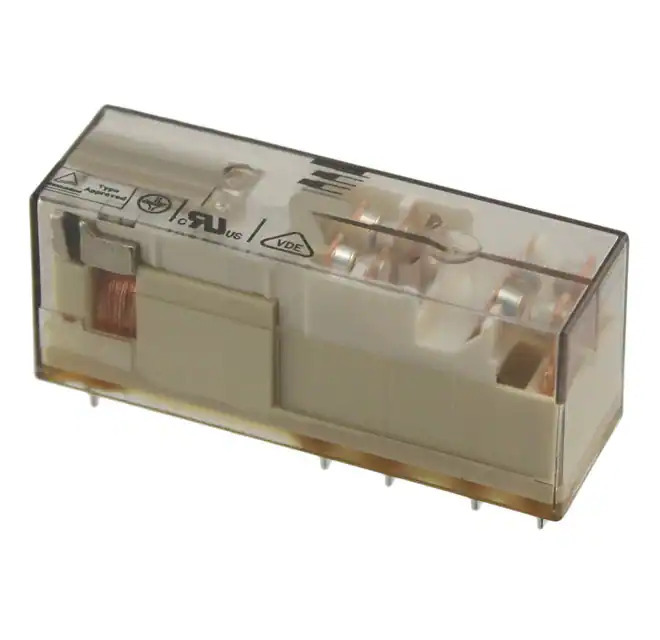

SR4M4048 TE Connectivity
Same model may have multiple batches, images only for reference.

SR4M4048

Part No SR4M4048
Manufacturer TE Connectivity
Catalog Safety Relays
Description RELAY SAFETY 4PST 8A 48V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Safety Relays
Mfr TE Connectivity Potter & Brumfield Relays
Series SR4, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form 4PST-3NO/1NC (3 Form A, 1 Form B)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Features -
Termination Style PC Pin
Must Operate Voltage 36 VDC
Must Release Voltage 4.8 VDC
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Current 16.7 mA
Coil Power 800mW
Coil Resistance 2.88 kOhms
Base Product Number SR4M
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1357247-SR4M4048
Ultra Librarian 3D Model Ultra Librarian SR4M4048 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays SR4M4048 is a safety relay.

  • Series: SR4, SCHRACK
  • Coil Voltage: 48VDC
  • Contact Form: 4PST-3NO/1NC (3 Form A, 1 Form B)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Contact Rating: 8A
  • Switching Voltage: 400VAC Maximum
  • Coil Current: 16.7mA
  • Coil Resistance: 2.88 kOhms
  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Temperature Range: -25°C to 70°C
