Products specifications

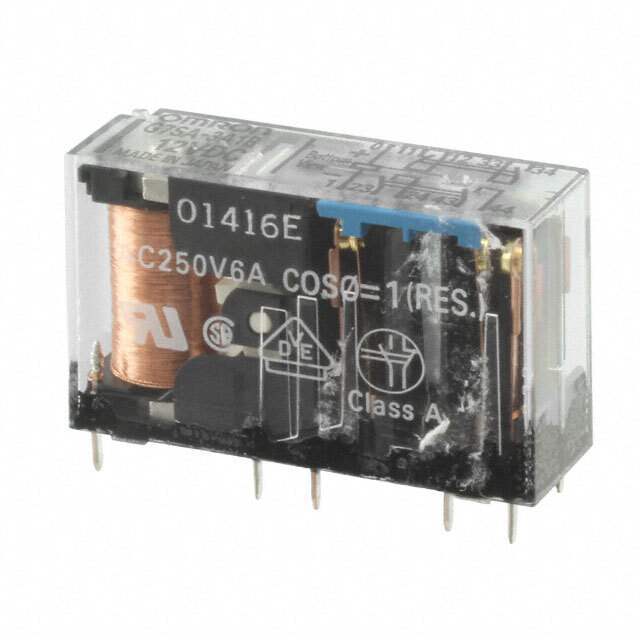

Win Source Part Number WS1209426-G7SA-2A2B DC12
Manufacturer Omron Automation and Safety
Category Relays -Safety Relays
Package Tube
Product Status Active
Mounting Type Socketable, Through Hole
Coil Voltage 12VDC
Contact Form 4PST-2NO/2NC (2 Form A, 2 Form B)
Switching Voltage 250VAC, 125VDC - Max
Features Sealed - Flux Protection
Termination Style PC Pin, Plug In
Ultra Librarian 3D Model Ultra Librarian G7SA-2A2B DC12 CAD Model

Description

• Additional Push-In Plus terminal sockets are used to save wiring work in comparison with traditional screw terminals. (Wiring time is reduced by 60%* in comparison with traditional screw terminals.) • Relays with forcibly guided contacts (EN 50205 Class A, certified by VDE). • Supports the CE marking of machinery (Machinery Directive). • Helps avoid hazardous machine status when used as part of an interlocking circuit. • Four-pole and six-pole Relays are available. • The Relay’s terminal arrangement simplifies PWB pattern design. • Reinforced insulation between inputs and outputs. Reinforced insulation between some poles of different polarity
