Same model may have multiple batches, images only for reference.

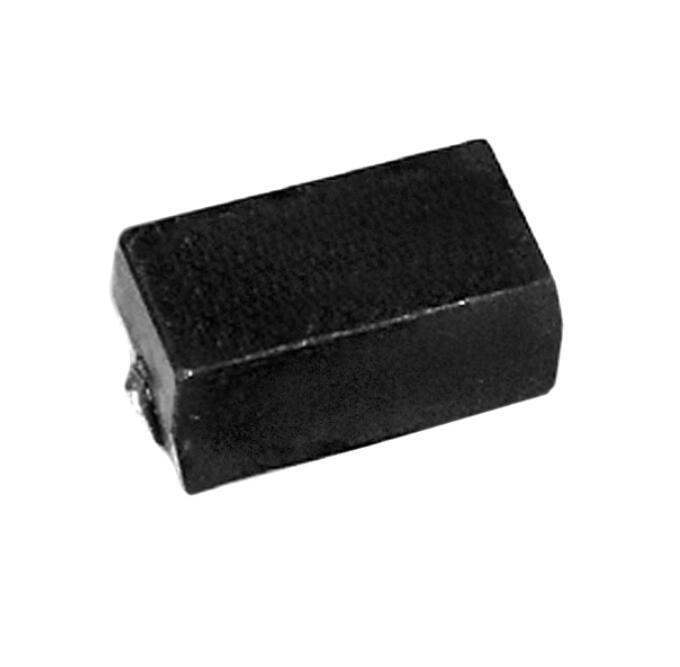

SMW22R2JT TE Connectivity Passive Product
Same model may have multiple batches, images only for reference.

SMW22R2JT

Part No SMW22R2JT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 2.2 OHM 5% 2W 2616
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203225-SMW22R2JT
Win Source Part Number Cross
Category Resistors Chip Resistor - Surface Mount
Manufacturer TE Connectivity Passive Product
Series SMW, CGS
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Resistance 2.2 Ohms
Tolerance ±5%
Power (Watts) 2W
Composition Wirewound
Ultra Librarian 3D Model Ultra Librarian SMW22R2JT CAD Model

Description

TE Connectivity (TE) introduces a surface mount power resistor suited to meet today's circuit design needs. Each size offers low profile case design with flexible tinned copper terminations for reliable solder joints. All styles utilize a fully welded construction technique, unlike other designs that rely solely on tinned termination connections. These features allow the SM Series to withstand the higher temperatures associated with reflow, vapour phase, or infrared (IR) manufacturing processes without degradation. Now also available at 7W power rating.
