Same model may have multiple batches, images only for reference.

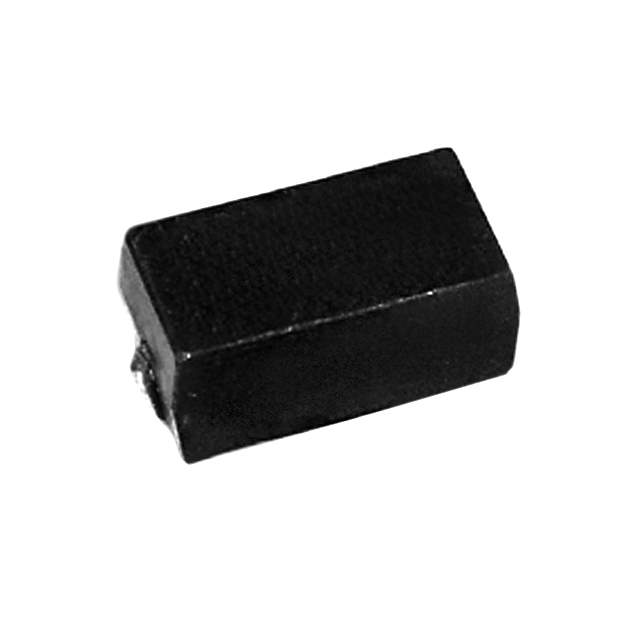

SMF2180KJT Real Image
Same model may have multiple batches, images only for reference.

SMF2180KJT

Part No SMF2180KJT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 180K OHM 5% 2W 2616 / 180 kOhms ±5% 2W Chip Resistor 2616 (6740 Metric), J-Lead Flame Retardant Coating, Safety Metal Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series SMF, CGS
Package Tape & Reel
Resistance 180 kOhms
Tolerance ±5%
Power (Watts) 2W
Composition Metal Film
Features Flame Retardant Coating, Safety
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Package / Case 2616 (6740 Metric), J-Lead
Supplier Device Package SMD
Dimension 0.264" L x 0.157" W (6.70mm x 4.00mm)
Height - Seated (Max) 0.152" (3.85mm)
Number of Terminations 2
Base Product Number SMF2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names A138671TR,A138671CT,SMF2180KJT-ND,7-1879011-1,A138671DKR,7-1879011-1-ND
Standard Package 2,000
Win Source Part Number 988991-SMF2180KJT
Ultra Librarian 3D Model Ultra Librarian SMF2180KJT CAD Model

Description

The SMF2180KJT is a 2W metal film resistor with a resistance of 180 kOhms and a ±5% tolerance from TE Connectivity Passive Product.

  • Power: 2W
  • Resistance: 180 kOhms
  • Tolerance: ±5%
  • Features: Flame-Retardant Coating and Safety Features
  • Application: Surface Mount
  • Package: Tape and Reel
  • Quantity: 2000
  • Height: 3.85mm
