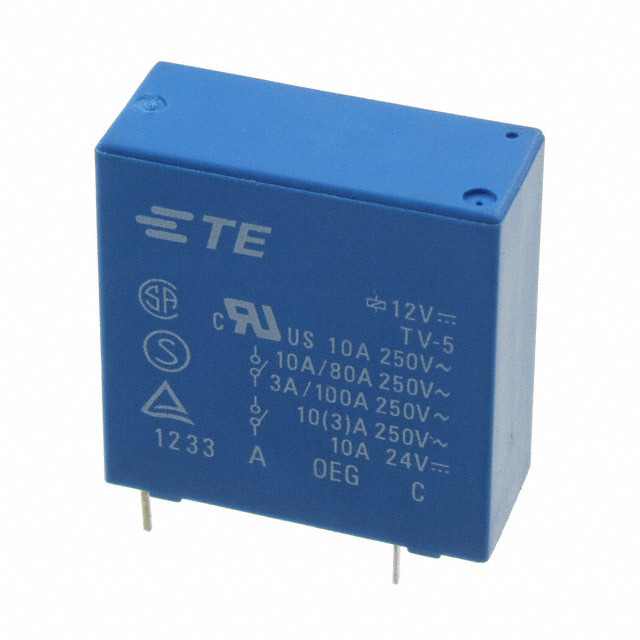

SDT-SS-112DM,000 TE Connectivity
Same model may have multiple batches, images only for reference.

SDT-SS-112DM,000

Part No SDT-SS-112DM,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V / Power Relay 12VDC 10A SPST-NO(24.4mm 10.4mm) THT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series SDT, OEG
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 44.4mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 24VDC - Max
Turn On Voltage (Maximum) 9 VDC
Turn Off Voltage (Minimum) 1.2 VDC
Operate Time 15ms
Release Time 8ms
Features Sealed - Flux Protection
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide Indium Oxide (AgSnOInO)
Coil Power 540 mW
Coil Resistance 267 Ohms
Operating Temperature Range -30°C ~ 60°C
Win Source Part Number 794056-SDT-SS-112DM,000
Popularity Medium
Supply and Demand Status Balance
Family Name SDT
Introduction Date June 02, 2003
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SDT-SS-112DM,000 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 794056-SDT-SS-112DM,000 is a general relay.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide Indium Oxide (AgSnOInO)
  • Coil Voltage: 12VDC
  • Coil Resistance: 267 Ohms
  • Contact Rating: 10A
  • Switching Voltage: 250VAC, 24VDC - Max
  • Packaging: Tube
  • Mounting Style: Through-Hole
  • Protection Feature: Sealed-Flux
  • Operating Temperature Range: -30°C to 60°C
  • Introduction Date: June 02, 2003
