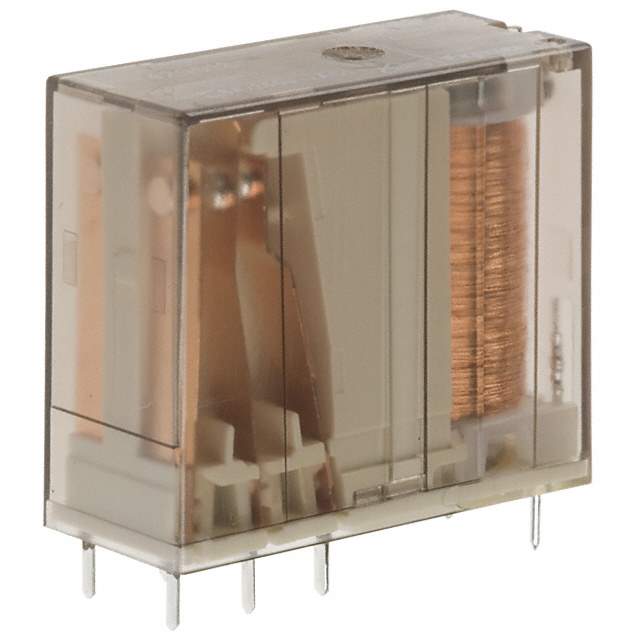

RP420012 Real Image
Same model may have multiple batches, images only for reference.

RP420012

Part No RP420012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 12V / General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RP II/2, SCHRACK
Package Box
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 44.4 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 9 ms
Release Time 3 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 270 Ohms
Base Product Number RP42
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names PB942,5-1393234-0
Standard Package 20
Win Source Part Number 1215758-RP420012
Ultra Librarian 3D Model Ultra Librarian RP420012 CAD Model

Description

The RP II/2, SCHRACK RP420012 is a power relay with a DPDT contact form and a silver cadmium oxide contact material.

  • Contact Form: DPDT
  • Contact Material: Silver Cadmium Oxide
  • Mounting Type: Through-Hole
  • Coil Voltage: 12VDC
  • Contact Rating: 8A
  • Switching Voltage: 400VAC max
  • Release Time: 3ms
  • Operating Temperature: -40°C to 70°C
  • Status: Obsolete
