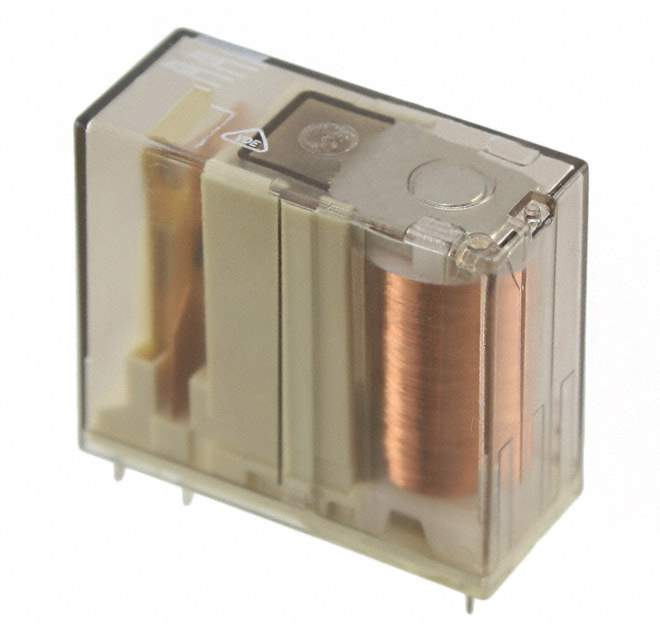

RP3SL024 Real Image
Same model may have multiple batches, images only for reference.

RP3SL024

Part No RP3SL024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 21.8mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 14ms
Release Time 12ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 500 mW
Coil Resistance 1.1 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 083386-RP3SL024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RP3SL024 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 083386-RP3SL024 is a high-popularity general purpose relay with a contact rating of 16A and a switching voltage of 400VAC.

  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Contact Rating: 16A
  • Switching Voltage: 400VAC
  • Protection: Sealed flux protection
  • Operating Voltage: 24VDC
  • Coil Resistance: 1.1 kOhms
  • Coil Current: 21.8mA
  • Operate Time: 14ms
  • Release Time: 12ms
  • Mounting Style: Through-hole
  • Termination Style: PC pin
  • Turn On Voltage: 18VDC
  • Turn Off Voltage: 2.4VDC
  • Supply and Demand Status: Limited
