Same model may have multiple batches, images only for reference.

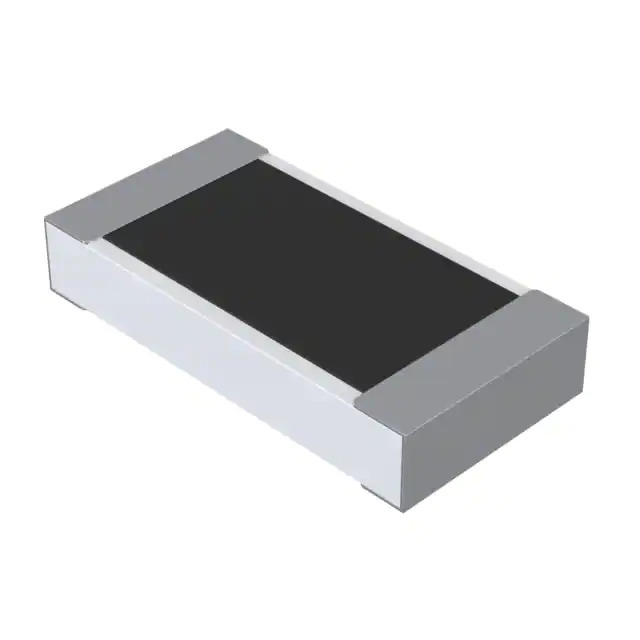

RLP73M2BR022JTD TE Connectivity
Same model may have multiple batches, images only for reference.

RLP73M2BR022JTD

Part No RLP73M2BR022JTD
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 0.022 OHM 5% 1/2W 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series RL73, CGS
Package Tape & Reel
Product Status Active
Resistance 22 mOhms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±400ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Failure Rate -
Base Product Number RLP73M2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375546-RLP73M2BR022JTD
Ultra Librarian 3D Model Ultra Librarian RLP73M2BR022JTD CAD Model

Description

The TE Connectivity Passive Product RL73 CGS Chip Resistor is a high-quality and reliable resistor for various electronic applications.

  • Temperature Range: -55°C to 155°C
  • Current Sense: Yes
  • Package/Case: 1206 (3216 Metric)
  • Tolerance: ±5%
  • Resistance: 22 mOhms
  • Power Rating: 0.5W (1/2W)
  • Material: Thick Film
