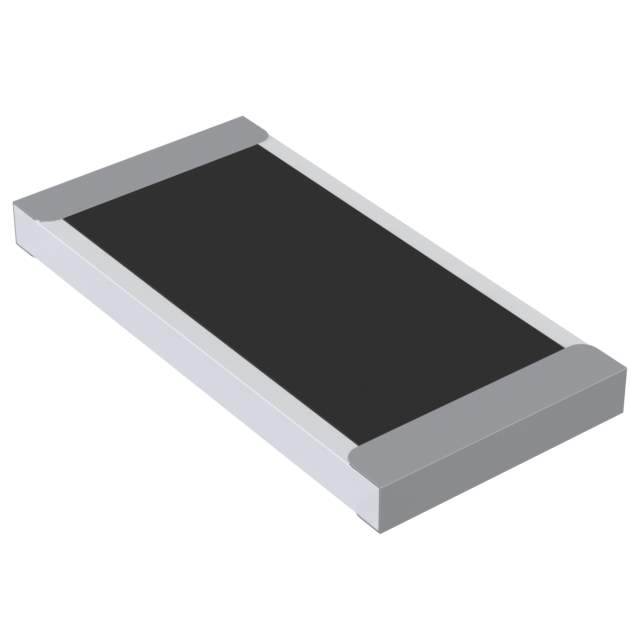

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series RL73, CGS
Package Tape & Reel
Resistance 300 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.250" L x 0.122" W (6.35mm x 3.10mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number RL73H3
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351785-RL73H3AR30FTDF
Ultra Librarian 3D Model Ultra Librarian RL73H3AR30FTDF CAD Model

Description

The TE Connectivity AMP Connectors 809051-640445-3 is a through-hole header connector with 3 positions manufactured by TE Connectivity AMP Connectors.

  • Connector Gender: Male Pin
  • Applications: General Purpose and Industrial
  • Voltage Rating: 600VAC
  • Contact Material: Copper Alloy
  • Package: Bulk
  • Shrouded: 1 Wall
  • Current Rating: Varies by Wire Gauge
