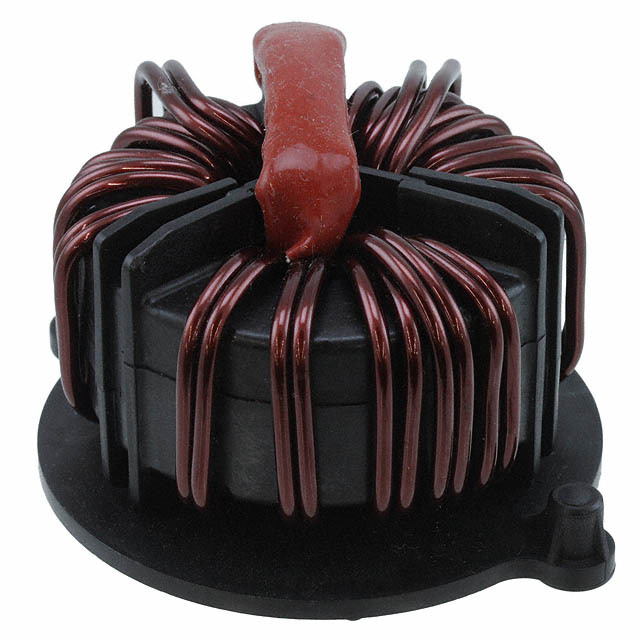

Same model may have multiple batches, images only for reference.
RD8147-25-1M3 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

RD8147-25-1M3

Part No RD8147-25-1M3
Manufacturer TE Connectivity
Catalog Common Mode Chokes
Description CMC 1.3MH 25A 4LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 4
Inductance @ Frequency 1.3 mH @ 400 Hz
Current Rating (Max) 25A (Typ)
DC Resistance (DCR) (Max) 5.05mOhm (Typ)
Voltage Rating - DC 850V
Voltage Rating - AC 600V
Temperature Range - Operating -25°C ~ 110°C
Mounting Type Through Hole
Size / Dimension 3.150" L x 3.150" W (80.00mm x 80.00mm)
Height (Max) 1.988" (50.50mm)
Case / Package Horizontal, 8 PC Pin
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1530596-RD8147-25-1M3
Ultra Librarian 3D Model Ultra Librarian RD8147-25-1M3 CAD Model

Description

N
