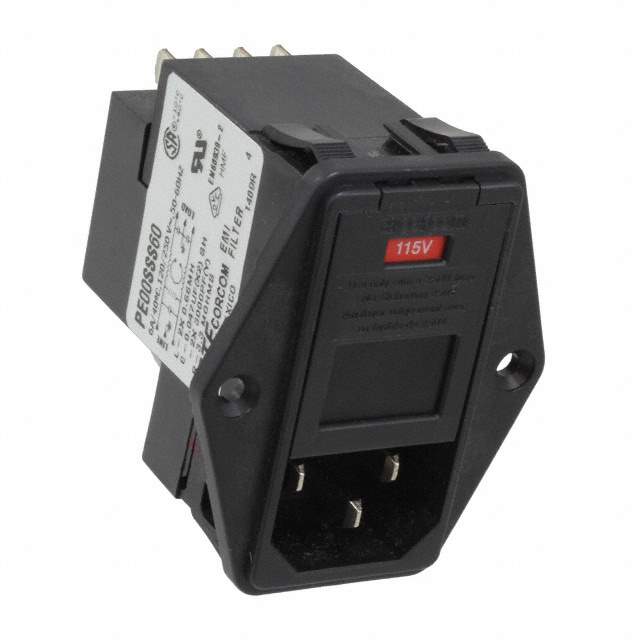

PE00SSS60 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr TE Connectivity Corcom Filters
Series P, Corcom
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 6A
Voltage - IEC 120VAC
Current - UL 6A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse Yes (Fuse Not Included)
Number of Positions 3
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.187" (4.7mm)
Features Conversion Clip, Voltage Selector
Fuse Holder, Drawer Fuse Holder
Panel Cutout Dimensions Variable Size
Panel Thickness 0.031" ~ 0.114" (0.79mm ~ 2.90mm)
Approval Agency CSA, UL, VDE
Base Product Number PE00
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Names -6609104-3-SI-ND,6609104-3,PE00SSS60-NDR,-PE00SSS60-SI,1609104-3,-6609104-3-SI
Standard Package 16
Win Source Part Number 1022030-PE00SSS60
Ultra Librarian 3D Model Ultra Librarian PE00SSS60 CAD Model

Description

The TE Connectivity Corcom Filters P Series PE00SSS60 is a power entry connector with an inlet, outlet, and module.

  • Positions: three
  • Features: voltage selector, and a conversion clip
  • Connector Type: receptacle with male blades
  • Termination: quick connect of 0.187 inches (4.7mm)
  • Package: bulk
  • Connector Style: IEC 320-C14
  • Filter Type: filtered (EMI, RFI) commercial filter type
  • Features: fuse holder drawer also included
  • Panel Cutout Dimensions: variable
  • Panel Thickness: 0.031 inches to 0.114 inches (0.79mm to 2.90mm)
  • Mounting Type: panel mount with a flange
  • Approval Agencies: CSA, UL, and VDE
  • Fuse Accommodation: suitable for accommodating a fuse (fuse not included)
  • REACH: unaffected
  • ECCN: EAR99
  • HTSUS: 8536.30.8000
