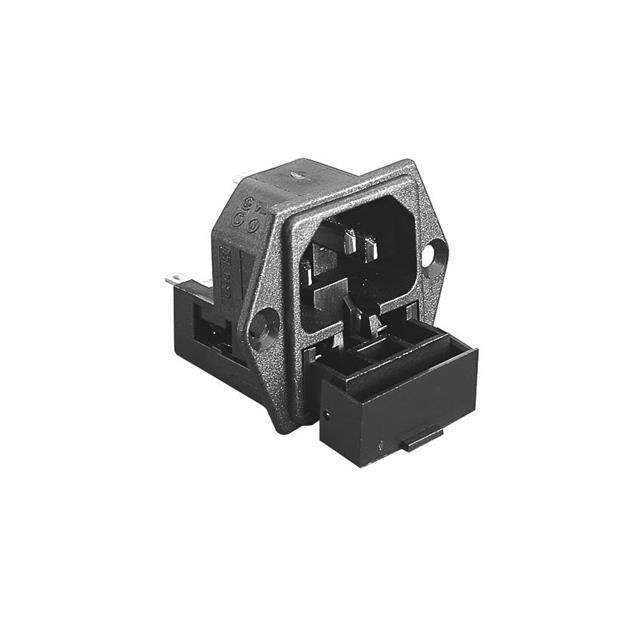

PF0030/PC Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr Bulgin
Series PF
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 10A
Voltage - IEC 250VAC
Filter Type Unfiltered - Commercial
Accomodates a Fuse Yes (Fuse Not Included)
Number of Positions 3
Mounting Type Panel Mount, Flange; Through Hole, Right Angle
Termination Solder
Fuse Holder, Drawer Fuse Holder, Twin Fused
Panel Cutout Dimensions Rectangular - 28.10mm x 31.30mm
Panel Thickness 0.157" (4.00mm)
Material Flammability Rating UL94 V-0
Approval Agency CSA, UL
Base Product Number PF0030
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Names PF0030/PC-ND,2266-PF0030/PC,708-1914
Standard Package 200
Win Source Part Number 985038-PF0030/PC
Ultra Librarian 3D Model Ultra Librarian PF0030/PC CAD Model

Description

The Bulgin PF0030/PC Power Entry Connector is a 3-position, unfiltered commercial connector with a twin fused drawer.

  • Current - IEC Rating: 10A
  • Voltage - IEC Rating: 250VAC
  • Connector Type: Receptacle with Male Blades in a Module
  • Termination: Solder
  • Panel Cutout Dimensions: Rectangular @ 28.10mm x 31.30mm
  • Panel Thickness: 0.157 inches (4.00mm)
  • Package: Bulk
  • Connector Style: IEC 320-C14
  • Ingress Protection: Not Specified
  • Material Flammability Rating: UL94 V-0
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
  • Fuse: Accommodates a Fuse (Not Included)
  • Approval Agency: CSA and UL
