PB134005 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

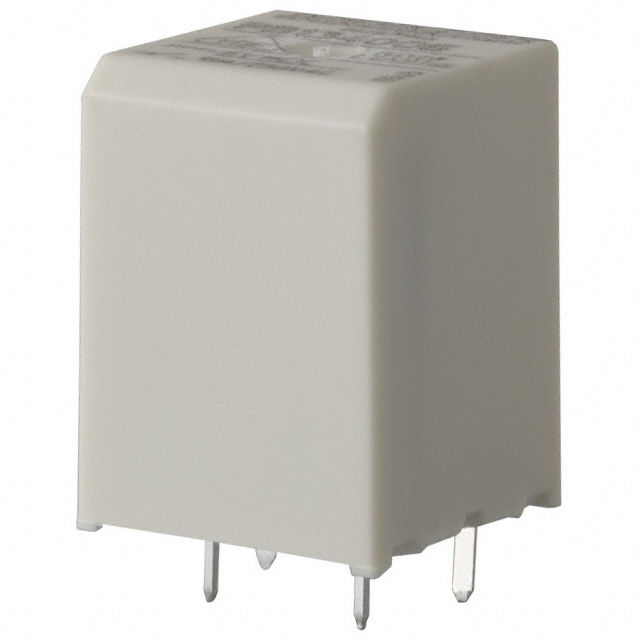

PB134005

Part No PB134005
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr TE Connectivity Potter & Brumfield Relays
Series PB, SCHRACK
Packaging Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 400VAC - Max
Load - Max Switching 4000VA
Coil Current 71.4 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Approval Agency cURus, VDE
Relay Type General Purpose
Coil Resistance 70 Ohms
Base Product Number PB1340
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1481181-PB134005
Ultra Librarian 3D Model Ultra Librarian PB134005 CAD Model
