Same model may have multiple batches, images only for reference.

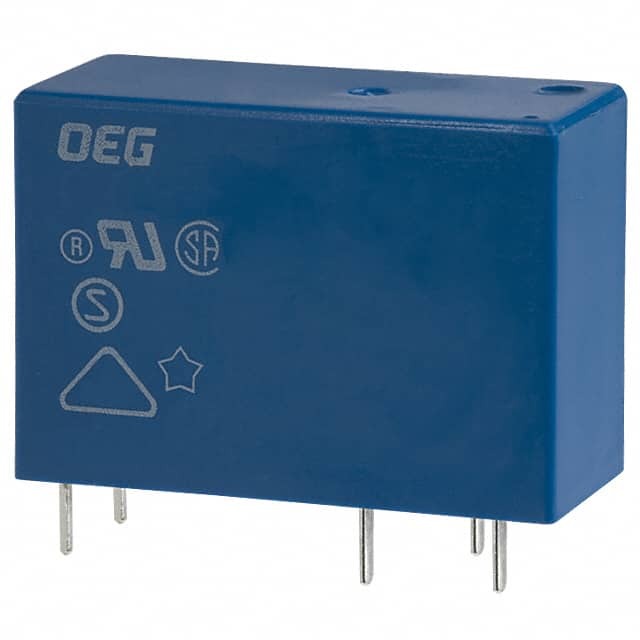

OMI-SH-205L,594
Same model may have multiple batches, images only for reference.

OMI-SH-205L,594

Part No OMI-SH-205L,594
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 5V / General Purpose Relay DPDT (2 Form C) 5VDC Coil Through Hole
Datasheet
OMI-SH-205L,594 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series OMI, OEG
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 106 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.25 VDC
Operate Time 20 ms
Release Time 8 ms
Temperature Range - Operating -30°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 48.5 Ohms
Base Product Number OMI-SH
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 884875-OMI-SH-205L,594
Ultra Librarian 3D Model Ultra Librarian OMI-SH-205L,594 CAD Model

Description

The 884875-OMI-SH-205L,594 power relay is a high-quality component used for power control applications from TE Connectivity.

  • Series: OMI and OEG
  • Contact Form: DPDT (2 Form C)
  • Termination: PC Pin
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 5VDC
  • Coil Resistance: 48.5 Ohms
  • Operate Time: 20 ms
  • Release Time: 8 ms
  • Contact Rating: 5A
  • Switching Voltage: 250VAC or 30VDC
  • Seal: Fully Sealed
  • Temperature Range: -30°C to 70°C
