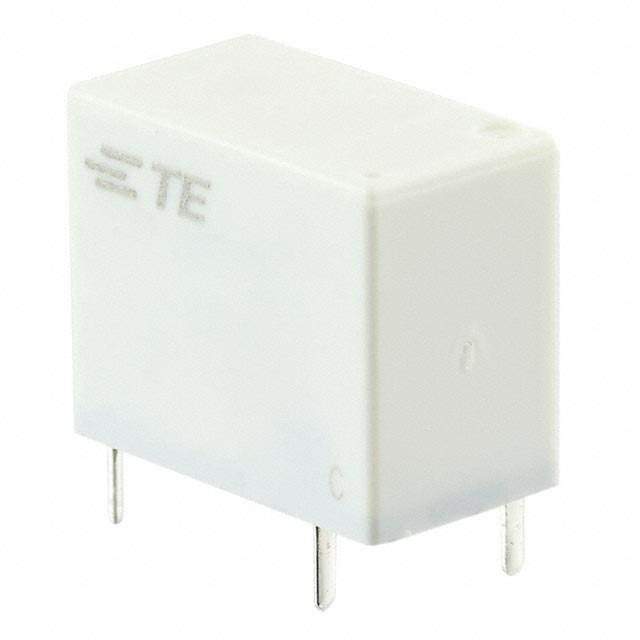

OJ-SS-124LMH2 Real Image
Same model may have multiple batches, images only for reference.

OJ-SS-124LMH2

Part No OJ-SS-124LMH2
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 24V / Power Relay 24VDC 8A SPST-NO(18.2x10.2x14.7)mm THT
Datasheet
OJ-SS-124LMH2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series OJ, OEG
Packaging Bulk
Relay Type General
Coil Type Non Latching
Coil Current 8.6mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8A
Switching Voltage 277VAC, 30VDC - Max
Turn On Voltage (Maximum) 18 VDC
Turn Off Voltage (Minimum) 1.2 VDC
Operate Time 15ms
Release Time 4ms
Features Sealed - Flux Protection
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide Indium Oxide (AgSnOInO)
Coil Power 200 mW
Coil Resistance 2.88 kOhms
Operating Temperature Range -30°C ~ 85°C
Win Source Part Number 790891-OJ-SS-124LMH2
Popularity Medium
Supply and Demand Status Limited
Family Name OJ-SS-124LMH2
Introduction Date September 21, 2008
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian OJ-SS-124LMH2 CAD Model

Description

This electronic component is a Potter & Brumfield Relay product from TE Connectivity, with the Win Source Part Number 790891-OJ-SS-124LMH2.

  • Protection: sealed, flux-protected
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: silver tin oxide indium oxide (AgSnOInO)
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.6mA
  • Relay Type: general
  • Coil Type: non-latching
  • Coil Voltage: 24VDC
  • Contact Rating (current): 8A
  • Switching Voltage: 277VAC, 30VDC - Max
