Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series MPT, CGS
Package Tube
Resistance 100 Ohms
Tolerance ±1%
Power (Watts) 100W
Composition Thick Film
Features Non-Inductive
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -65°C ~ 175°C
Package / Case TO-247-2
Supplier Device Package TO-247
Dimension 0.620" L x 0.195" W (15.75mm x 4.95mm)
Height - Seated (Max) 0.965" (24.51mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.29.0000
Other Names 5-2176429-5,1712-MPT100C100RF
Standard Package 35
Win Source Part Number 1080185-MPT100C100RF
Ultra Librarian 3D Model Ultra Librarian MPT100C100RF CAD Model

Description

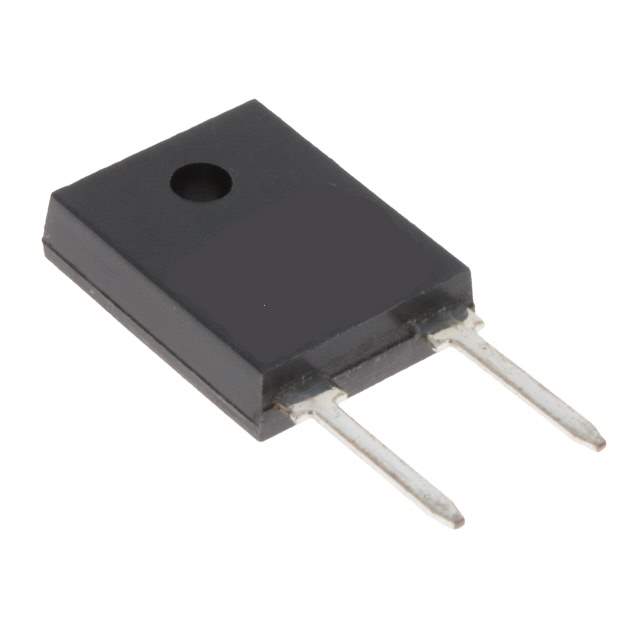

The TE Connectivity Passive Product MPT100C100RF is a through-hole resistor with a resistance of 100 ohms and a power rating of 100 watts.

  • Resistance: 100 ohms
  • Power Rating: 100 watts
  • Type: Thick film resistor
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Inductive: Non-inductive
  • Operating Temperature: -65°C to 175°C
  • Terminations: Two
  • Package: TO-247-2
