Same model may have multiple batches, images only for reference.

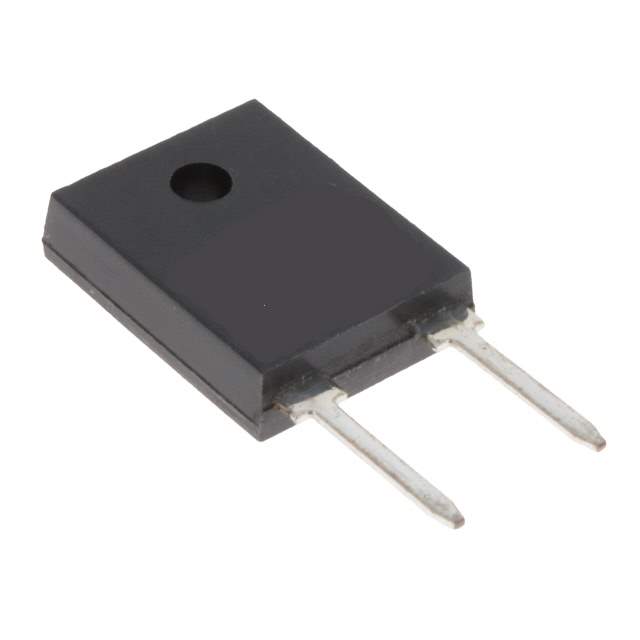

MPT100A3R9F Real Image
Same model may have multiple batches, images only for reference.

MPT100A3R9F

Part No MPT100A3R9F
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 3.9 OHM 1% 100W TO220 / 3.9 Ohms ±1% 100W Through Hole Resistor TO-247-2 Non-Inductive Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series MPT, CGS
Package Tube
Resistance 3.9 Ohms
Tolerance ±1%
Power (Watts) 100W
Composition Thick Film
Features Non-Inductive
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -65°C ~ 175°C
Package / Case TO-247-2
Supplier Device Package TO-247
Dimension 0.620" L x 0.195" W (15.75mm x 4.95mm)
Height - Seated (Max) 0.965" (24.51mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.29.0000
Other Names 1712-MPT100A3R9F,3-2176429-8
Standard Package 35
Win Source Part Number 1086225-MPT100A3R9F
Ultra Librarian 3D Model Ultra Librarian MPT100A3R9F CAD Model

Description

The MPT100A3R9F is a resistor component manufactured by TE Connectivity Passive Product. MPT100A3R9F is a resistor component. TE Connectivity Passive Product manufactures it.

  • Resistor Type: Non-Inductive Thick Film
  • Power Rating: 100W
  • Resistance: 3.9 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Height: 0.965" (24.51mm)
  • Dimension: 0.620" L x 0.195" W (15.75mm x 4.95mm)
