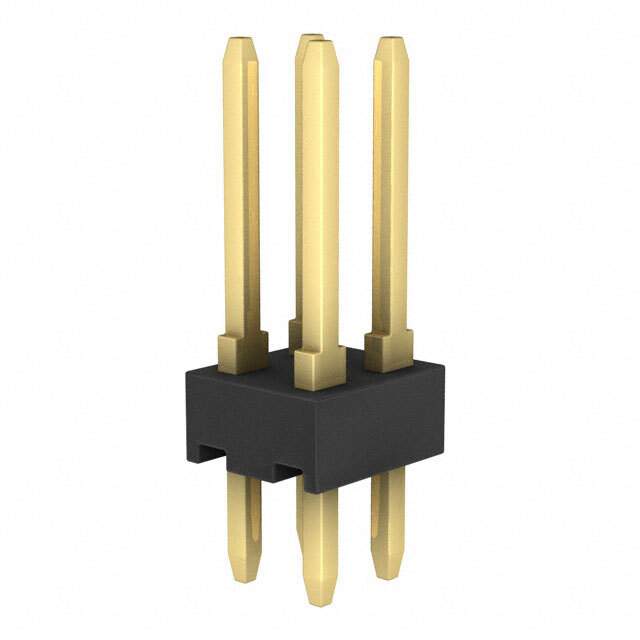

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.318" (8.08mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.533" (13.55mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post Flash
Base Product Number 87227
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 87227-2-ND,A26567,872272,2266-87227-2
Standard Package 500
Win Source Part Number 1210256-87227-2
Ultra Librarian 3D Model Ultra Librarian 87227-2 CAD Model

Description

The AMPMODU Mod II header connector from TE Connectivity AMP Connectors is a male pin connector with 4 positions loaded in 2 rows.

  • Pitch: 0.100 inches (2.54mm)
  • Connection Type: Board-to-Board or Cable
  • Insulation Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold (Mating and Post)
  • Contact Length (Mating): 0.318 inches (8.08mm)
  • Contact Length (Post): 0.125 inches (3.18mm)
  • Overall Contact Length: 0.533 inches (13.55mm)
  • Insulation Height: 0.090 inches (2.29mm)
  • Temperature Range: -65°C to 105°C
  • Current Rating: 3A
  • Mounting Type: Through Hole
  • Shrouded: Unshrouded
  • Packaging: Bulk
  • Standard Package: 500
