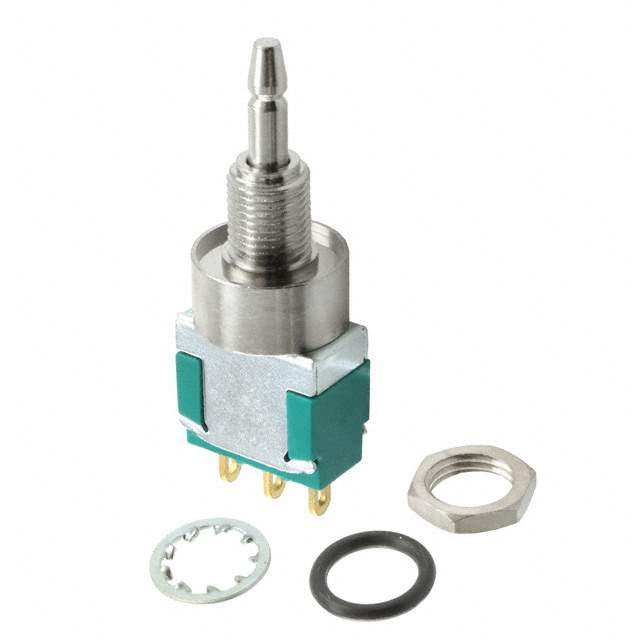

MPE106D Real Image
Same model may have multiple batches, images only for reference.

MPE106D

Part No MPE106D
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 6A 125V
Datasheet
MPE106D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Bulk
Status Active
Type Standard
Circuit SPDT
Switch Function On-On
Current Rating 6A (AC), 4A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 28V
Actuator Type Plunger for Cap
Mounting Panel Mount, Rear
Termination Style Solder Lug
Ingress Protection Splash Proof
Panel Cutout Dimensions Circular - 6.35mm Dia
Temperature Range - Operating -20°C to 80°C
Electrical Life 50,000 Cycles
Win Source Part Number 208769-MPE106D
Ultra Librarian 3D Model Ultra Librarian MPE106D CAD Model

Description

The TE Connectivity ALCOSWITCH Switches MPE106D is a standard type switch with a solder lug termination style.

  • Termination Style: Solder Lug
  • Type: Standard
  • Splash-proof: Yes
  • Current Rating (AC): 6A
  • Current Rating (DC): 4A
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 28V
  • Mounting: Panel Mount, Rear
  • Circuit: SPDT
  • Switch Function: On-On
  • Actuator Type: Plunger for a Cap
  • Electrical Life: 50,000 cycles
  • Temperature Range: -20°C to 80°C

The TE Connectivity ALCOSWITCH Switches MPE106D is a high-quality switch that is suitable for use in various electronic devices such as audio equipment, televisions, and other consumer electronics.
