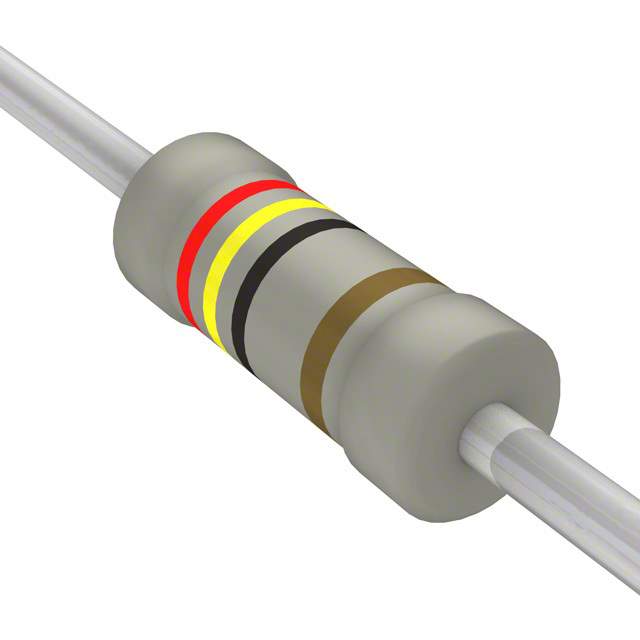

LR1F24R Real Image
Same model may have multiple batches, images only for reference.

LR1F24R

Part No LR1F24R
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 24 OHM 1% 0.6W AXIAL / 24 Ohms ±1% 0.6W Through Hole Resistor Axial Metal Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series LR, Neohm
Package Tape & Box (TB)
Resistance 24 Ohms
Tolerance ±1%
Power (Watts) 0.6W
Composition Metal Film
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.091" Dia x 0.244" L (2.30mm x 6.20mm)
Number of Terminations 2
Base Product Number LR1F
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0090
Other Names 1622400-1,1622400-1-ND
Standard Package 12,000
Win Source Part Number 1039604-LR1F24R
Ultra Librarian 3D Model Ultra Librarian LR1F24R CAD Model

Description

The LR1F24R is a through-hole resistor that belongs to the LR, Neohm series.

  • Ideal For: Use in electronic devices that require high precision and low power consumption
  • Tolerance: +/-1%
  • Temperature Coefficient: +/-50ppm/°C
  • Power Rating: 0.6W
  • Package/Case: Axial
  • Supplier Device Package: Axial
