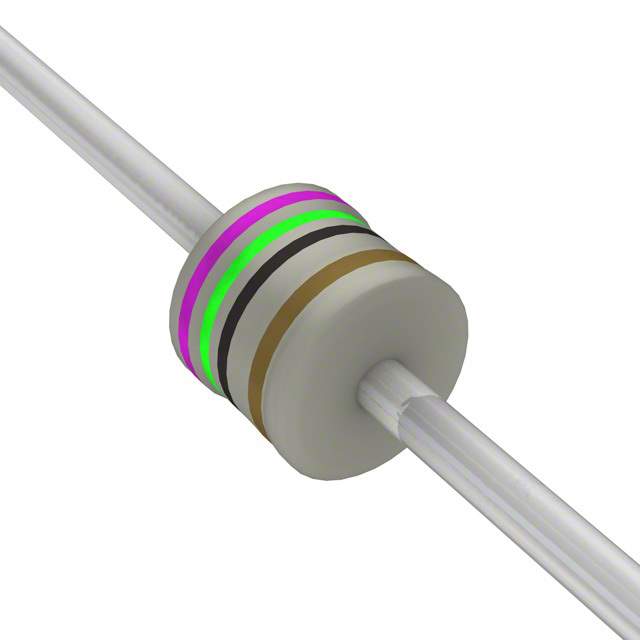

LR0204F75R Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series LR, Neohm
Package Tape & Box (TB)
Resistance 75 Ohms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.079" Dia x 0.138" L (2.00mm x 3.50mm)
Number of Terminations 2
Base Product Number LR0204
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0090
Other Names 1622278-2-ND,1622278-2
Standard Package 12,000
Win Source Part Number 1034898-LR0204F75R
Ultra Librarian 3D Model Ultra Librarian LR0204F75R CAD Model

Description

The LR0204F75R is a metal film resistor manufactured by TE Connectivity Passive Product.

  • Manufacturer: TE Connectivity Passive Product
  • Series: LR (Neohm)
  • Resistor Type: Metal Film
  • Mounting Type: Through-Hole
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Resistance: 75 Ohms
  • Power Rating: 0.25W
  • Package/Case: Axial
  • Packaging: Tape and Box
  • Temperature Range: -55°C ~ 155°C
  • ECCN: EAR99
