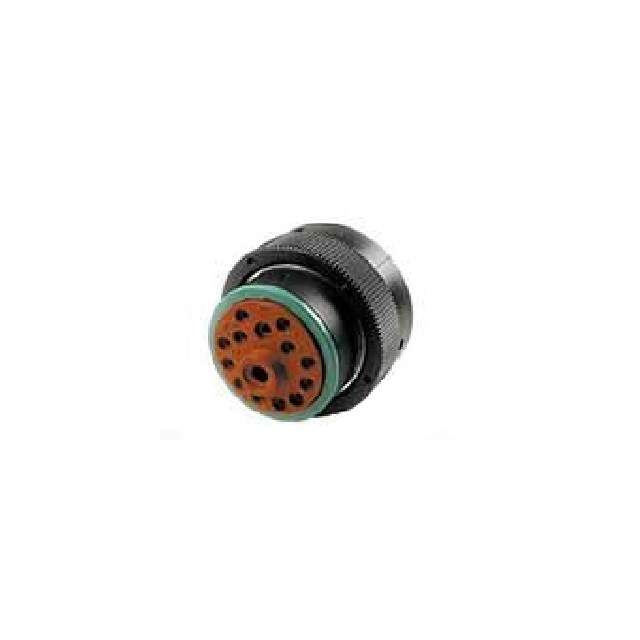

HDP26-24-14SN

Part No HDP26-24-14SN
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 14
Shell Size - Insert 24-14
Contact Type Crimp
Contact Size 4 (1), 12 (1), 16 (12)
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP26
Other Names 2266-HDP26-24-14SN,HDP26-24-14SN,1734-1736
Standard Package 40
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1294240-HDP26-24-14SN
Ultra Librarian 3D Model Ultra Librarian HDP26-24-14SN CAD Model

Description

The TE Connectivity Deutsch Connectors HDP26-24-14SN is a plug housing circular connector designed for female sockets. It has 14 positions and features a coupling nut, crimp contact type, and bayonet lock fastening type.

  • Ingress Protection: IP68 rating for dust tight and waterproof protection
  • Shell Material: Made of polyamide, nylon 6/6, and glass-filled materials
