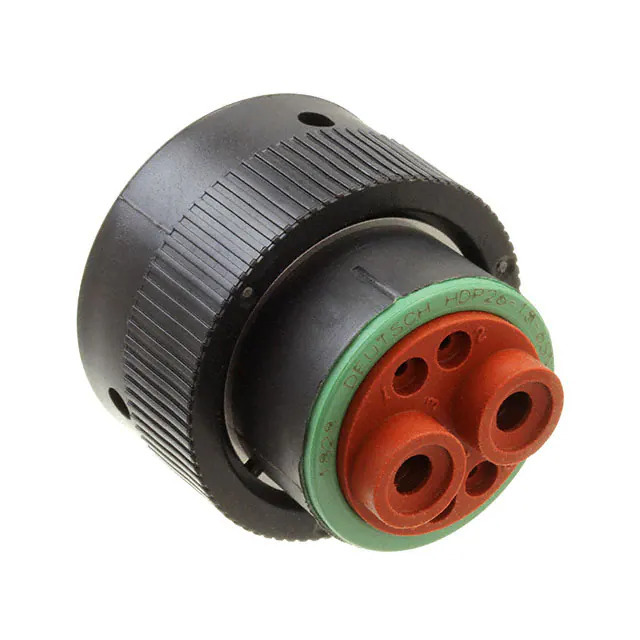

HDP26-18-6SN TE Connectivity
Same model may have multiple batches, images only for reference.

HDP26-18-6SN

Part No HDP26-18-6SN
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN PLUG HSG FMALE 6POS INLINE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Product Status Active
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 6
Shell Size - Insert 18-6
Shell Size, MIL -
Contact Type Crimp
Contact Size 4 (2), 16 (4)
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Finish -
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Includes -
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP26
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1366112-HDP26-18-6SN
Ultra Librarian 3D Model Ultra Librarian HDP26-18-6SN CAD Model

Description

The TE Connectivity Deutsch Connectors HDP26-18-6SN is a circular connector housing designed for use in circular connectors from TE Connectivity Deutsch Connectors.

  • Product Status: Active
  • Temperature Range: -55°C to 125°C
  • Gender: Female Sockets
  • Series: HDP20
  • Fastening Type: Bayonet Lock
  • Ingress Protection: IP68
  • Features: Dust Tightness and Waterproofing
  • Shell Size: 18-6
  • Number of Positions: 6
  • Shell Material: Polyamide (PA66), Nylon 6/6, Glass-Filled
  • Housing Color: Black
  • REACH: Unaffected
  • Material Flammability Rating: UL94 V-1
