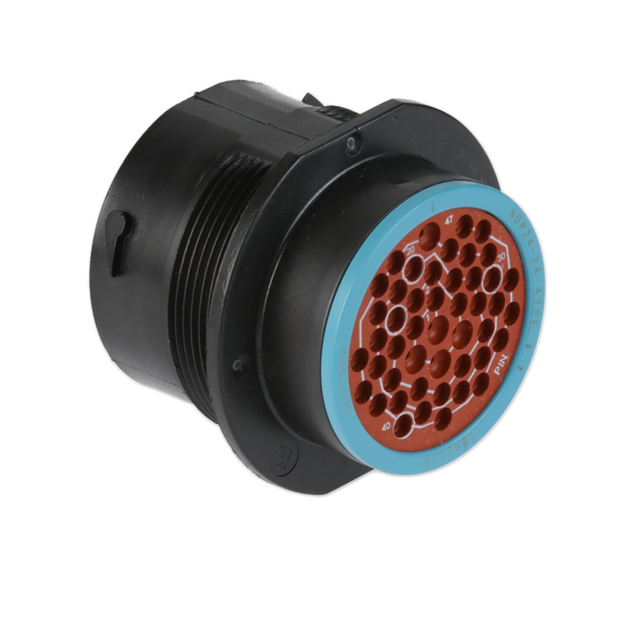

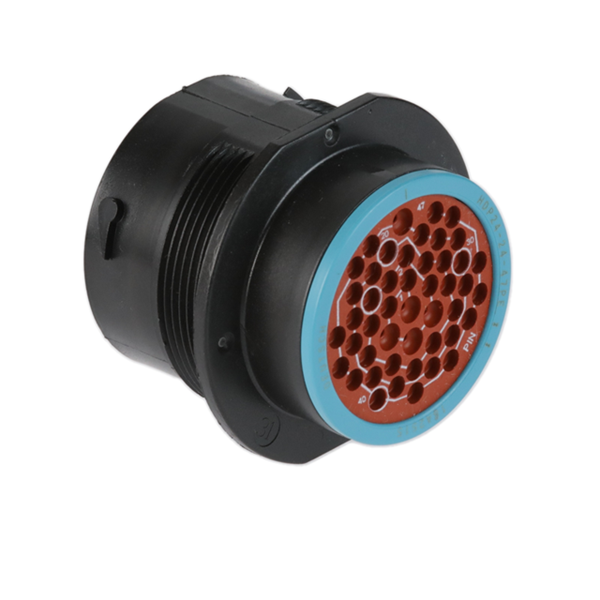

HDP24-24-47PE Real Image
Same model may have multiple batches, images only for reference.

HDP24-24-47PE

Part No HDP24-24-47PE
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 47
Shell Size - Insert 24-47
Contact Type Crimp
Contact Size 16 (5), 20 (42)
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Dust Cap
Shielding Unshielded
Note Contacts Not Included; Jam Nut Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP24
Other Names 1734-1210,-HDP24-24-47PE-SI,-1494-HDP24-24-47PE-CSI
Standard Package 30
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1294233-HDP24-24-47PE
Ultra Librarian 3D Model Ultra Librarian HDP24-24-47PE CAD Model

Description

This TE Connectivity Deutsch Connectors black receptacle housing is a circular connector housing that comes in bulk packaging.

  • Feature: Dust cap
  • Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Temperature Range: -55°C to 125°C
  • Shielding: Unshielded
  • Orientation: Keyed
  • Material Flammability Rating: UL94 V-1
  • Shell Size - Insert: 24-47
  • Contact Type: Crimp
  • Shell Material: Polyetherimide (PEI)
  • Insert Material: Polyetherimide (PEI)
  • ECCN: EAR99
  • HTSUS: 8538.90.6000
