Same model may have multiple batches, images only for reference.

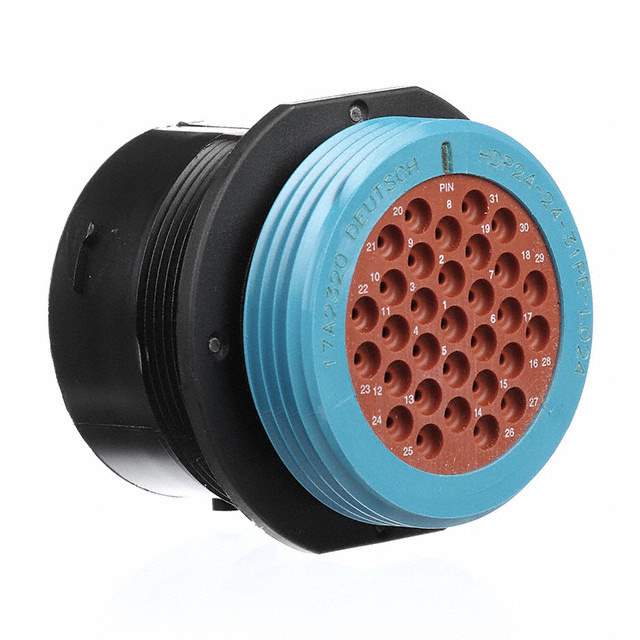

HDP24-24-31PE Real Image
Same model may have multiple batches, images only for reference.

HDP24-24-31PE

Part No HDP24-24-31PE
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 31
Shell Size - Insert 24-31
Contact Type Crimp
Contact Size 16
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Dust Cap
Shielding Unshielded
Note Contacts Not Included; Jam Nut Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP24
Other Names -HDP24-24-31PE-CSI,-HDP24-24-31PE-SI,1734-1207
Standard Package 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1294234-HDP24-24-31PE
Ultra Librarian 3D Model Ultra Librarian HDP24-24-31PE CAD Model

Description

This electronic component is a circular connector housing product with a Win Source Part Number of 1294234-HDP24-24-31PE. It belongs to the HDP20 series and is designed for male pins.

  • Positions: 31
  • Feature: Dust cap
  • Connector Type: Receptacle housing
  • Contact Type: Crimp
  • Fastening Type: Bayonet lock
  • Package: Bulk
  • Contact Size: 16
  • Contacts Included: No
  • Jam Nut Included: No
  • Ingress Protection: IP68 (dust tight and waterproof)
  • Shielding: Unshielded
  • Material Flammability Rating: UL94 V-1
  • Orientation: Keyed
  • Housing Color: Black
  • Standard Package: 30 units
  • Operating Temperature Range: From -55°C to 125°C
