Same model may have multiple batches, images only for reference.

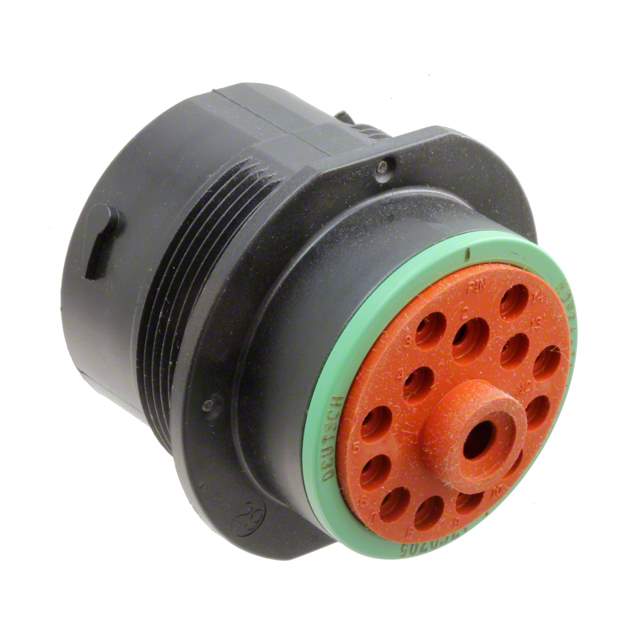

HDP24-24-14PN Real Image
Same model may have multiple batches, images only for reference.

HDP24-24-14PN

Part No HDP24-24-14PN
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 14
Shell Size - Insert 24-14
Contact Type Crimp
Contact Size 4 (1), 12 (1), 16 (12)
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Dust Cap
Shielding Unshielded
Note Contacts Not Included; Jam Nut Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP24
Other Names HDP24-24-14PN,1734-1500
Standard Package 30
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1294236-HDP24-24-14PN
Ultra Librarian 3D Model Ultra Librarian HDP24-24-14PN CAD Model

Description

The TE Connectivity Deutsch Connectors HDP24-24-14PN is a receptacle housing connector for male pins. It has 14 positions and features a dust cap.

  • Contact Type: Crimp
  • Fastening Type: Bayonet lock
  • Package: Bulk
  • Contacts Included: No
  • Jam Nut Included: No
  • Ingress Protection: IP68 - Dust Tight, Waterproof
  • Shielding: Unshielded
  • Material Flammability Rating: UL94 V-1
  • Orientation: Keyed
  • Housing Color: Black
  • Standard Package: 30 connectors
  • Mounting Feature: Bulkhead - front side nut
  • Shell Size-Insert: 24-14
  • Insert Material: Polyetherimide (PEI)
  • Temperature Range: -55°C ~ 125°C
