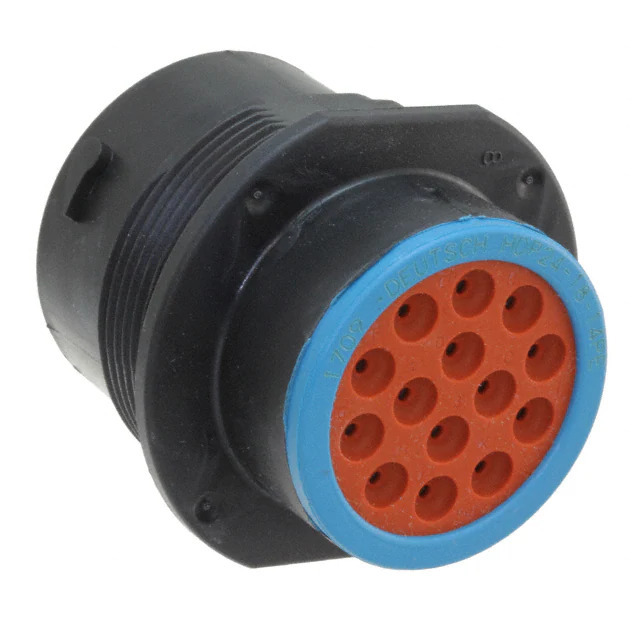

Same model may have multiple batches, images only for reference.

HDP24-18-14PE

Name: HDP24-18-14PE
Brand: TE Connectivity
SKU: 1363797
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HDP24-18-14PE
Manufacturer	TE Connectivity
Catalog	Circular Connectors - Housings
Description	CONN RCPT HSNG MALE 14POS PNL MT / 14 Position Circular Connector Receptacle Housing Panel Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr	TE Connectivity Deutsch Connectors
Series	HDP20
Package	Bulk
Product Status	Active
Connector Type	Receptacle Housing
Type	For Male Pins
Number of Positions	14
Shell Size - Insert	18-14
Shell Size, MIL	-
Contact Type	Crimp
Contact Size	16
Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Front Side Nut
Fastening Type	Bayonet Lock
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Finish	-
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-1
Features	-
Shielding	Unshielded
Note	Contacts Not Included; Jam Nut Not Included
Includes	-
Insert Material	Polyetherimide (PEI)
Contact Shape	Circular
Temperature Range - Operating	-55°C ~ 125°C
Base Product Number	HDP24
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1363797-HDP24-18-14PE
Ultra Librarian 3D Model	Ultra Librarian HDP24-18-14PE CAD Model

Alternative Products

Description

The TE Connectivity Deutsch Connectors HDP20 series offers a circular connector housing suitable for various electronic applications.

Packaging: Bulk
Product Status: Active
Connector Type: Receptacle Housing
Contact Type: Crimp
Contact Gender: Male Pin
Number of Positions: 14
Fastening Type: Bayonet Lock
Shielding: Unshielded
Ingress Protection: IP68
Material Flammability Rating: UL94 V-1
Shell Size - Insert: 18-14
Contact Size: 16
Shell Material: Polyamide (PA66), Nylon 6/6, Glass Filled
Operating Temperature: -55°C to 125°C
