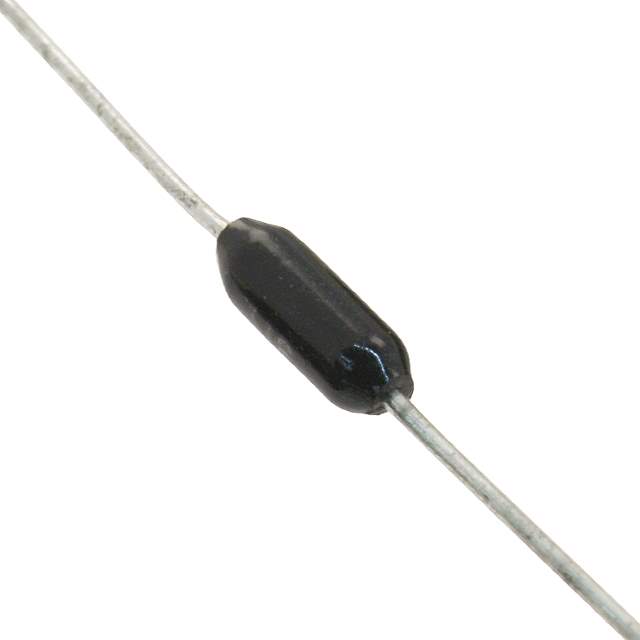

H4953KBDA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series Holco, Holsworthy
Package Bulk
Resistance 953 kOhms
Tolerance ±0.1%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Features Pulse Withstanding
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.146" Dia x 0.394" L (3.70mm x 10.00mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1315350-H4953KBDA
Ultra Librarian 3D Model Ultra Librarian H4953KBDA CAD Model

Description

The 1315350-H4953KBDA is a through-hole resistor from the Holco series with a resistance of 953 kOhms and a power rating of 0.5W.

  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Features: pulse-withstanding
  • Composition: metal film
  • Terminations: two
  • Package / Case: axial
  • Temperature Range: -55°C to 155°C
  • Dimension: 0.146" Dia x 0.394" L (3.70mm x 10.00mm)
