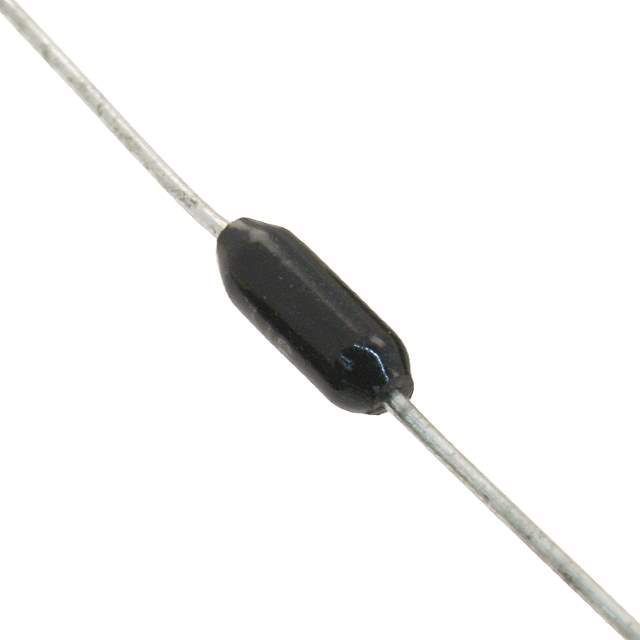

H8316KBDA Real Image
Same model may have multiple batches, images only for reference.

H8316KBDA

Part No H8316KBDA
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series Holco, Holsworthy
Package Bulk
Resistance 316 kOhms
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Pulse Withstanding
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.098" Dia x 0.283" L (2.50mm x 7.20mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1315013-H8316KBDA
Ultra Librarian 3D Model Ultra Librarian H8316KBDA CAD Model

Description

The H8316KBDA is a Holco, Holsworthy through-hole resistor that is designed to be used in various electronic devices. This component has a resistance of 316 kOhms, and a tolerance of ±0.1%.

  • Resistance: 316 kOhms
  • Tolerance: ±0.1%
  • Resistor Type: Pulse Withstanding
  • Temperature Range: -55°C to 155°C
  • Power Rating: 0.25W
  • Failure Rate: Not Specified
  • Composition: Metal Film
  • Terminations: 2
  • Mounting Type: Through Hole
