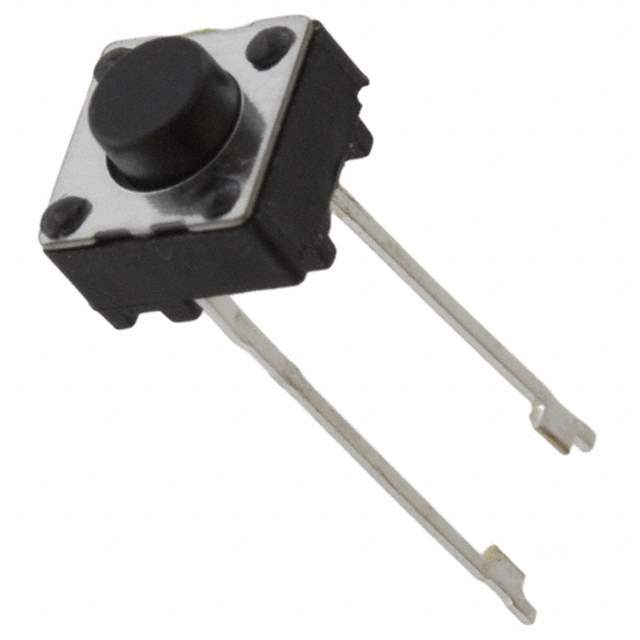

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series FSMJRT
Package Cut Tape (CT),Tape & Box (TB)
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -35°C ~ 105°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number FSM4
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 450-2038-1,450-2038-3,4-1437565-0,FSM4JRT-ND,-FSM4JRT-SI
Standard Package 20,000
Win Source Part Number 1062455-FSM4JRT
Ultra Librarian 3D Model Ultra Librarian FSM4JRT CAD Model

Description

The TE Connectivity ALCOSWITCH Switches FSMJRT series FSM4JRT tactile switch has a circuit of SPST-NO and a switch function of Off-Mom.

  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Actuator Material: Polyamide (PA66) and nylon 6/6
  • Mechanical Life: 100,000 cycles
  • Operating Force: 160gf
  • Mounting Type: Through-hole
  • Temperature Range: -35°C to 105°C
  • Win Source Part Number: 1062455-FSM4JRT
