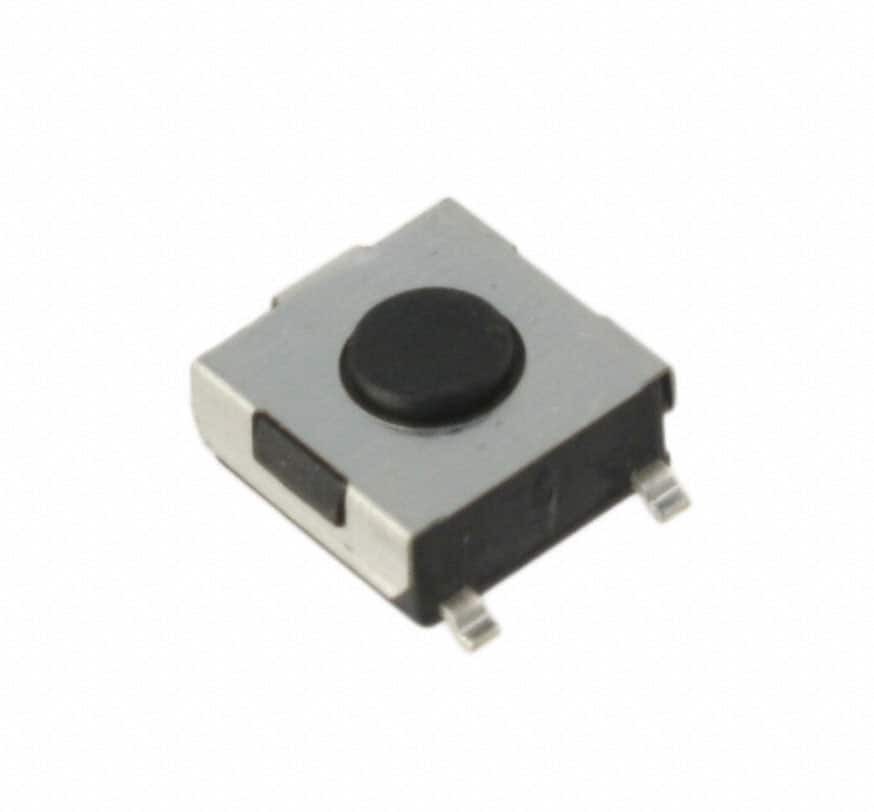

FSM1LPTR TE Connectivity
Same model may have multiple batches, images only for reference.

FSM1LPTR

Part No FSM1LPTR
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series FSM1LP
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 3.10mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Polyphthalamide (PPA)
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number FSM1
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9031
Other Names FSM1LPTR-ND,450-1756-6,450-1756-1,450-1756-2,1-1437565-9
Standard Package 1,500
Win Source Part Number 1034446-FSM1LPTR
Ultra Librarian 3D Model Ultra Librarian FSM1LPTR CAD Model

Description

The TE Connectivity ALCOSWITCH Switches FSM1LPTR is a surface mount tactile switch with SPST-NO circuit configuration and an off-mom switch function.

  • Switch Function: Off-Mom
  • Circuit: SPST-NO
  • Package Quantity: 1500
  • Packaging: Tape & Reel
  • Termination Style: Gull Wing
  • Actuator Material: Polyphthalamide (PPA)
  • Actuator Height off PCB: 3.10mm
  • Actuator Travel: 0.25mm
  • Contact Rating: 0.05A @ 24VDC
  • Operating Force: 160gf
  • Operating Temperature: -35°C to 85°C
  • Mechanical Life: 100,000 Cycles
