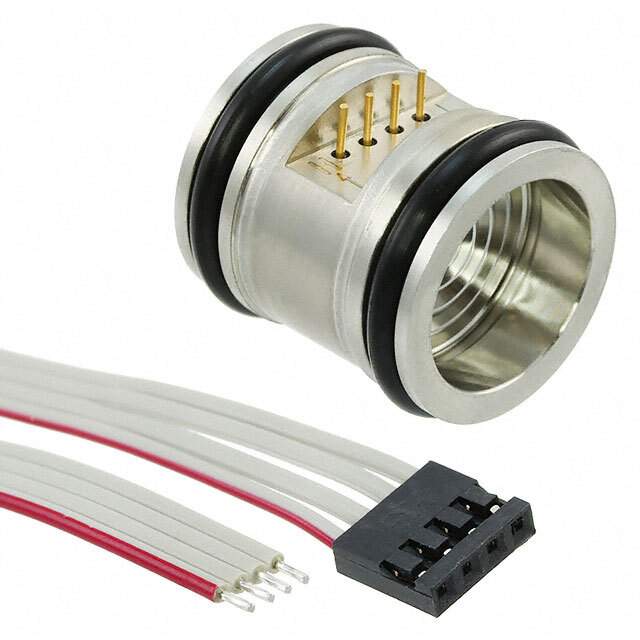

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers - Industrial
Mfr TE Connectivity Measurement Specialties
Series DP86
Package Tube
Applications Industrial Automation
Pressure Type Differential
Operating Pressure 5PSI (34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 97.5 mV (5V)
Accuracy ±0.2%
Voltage - Supply 5V ~ 9.5V
Port Style No Port
Termination Style Wire Leads
Maximum Pressure 15PSI (103.42kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case Module
Base Product Number DP86
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 9026.20.4000
Other Names 223-1516-5
Standard Package 1
Win Source Part Number 1055912-DP86-005D
Ultra Librarian 3D Model Ultra Librarian DP86-005D CAD Model

Description

The DP86-005D from TE Connectivity Measurement Specialties is an industrial pressure sensor that belongs to the DP86 series.

  • Termination Style: wire leads
  • Pressure Type: differential
  • Operating Pressure: 5PSI
  • Maximum Pressure: 15PSI
  • Output: 0 mV to 97.5 mV
  • Accuracy: ±0.2%
  • Win Source Part Number: 1055912-DP86-005D
