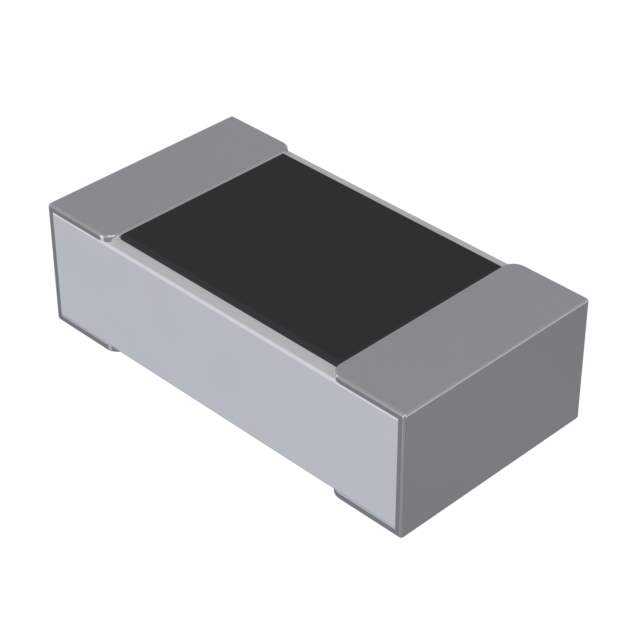

CRGH0603F560R Real Image
Same model may have multiple batches, images only for reference.

CRGH0603F560R

Part No CRGH0603F560R
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 560 OHM 1% 1/5W 0603 / 560 Ohms ±1% 0.2W, 1/5W Chip Resistor 0603 (1608 Metric) Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRGH, Neohm
Package Tape & Reel (TR)
Resistance 560 Ohms
Tolerance ±1%
Power (Watts) 0.2W, 1/5W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Base Product Number CRGH0603
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2176177-8
Standard Package 20,000
Win Source Part Number 1033736-CRGH0603F560R
Ultra Librarian 3D Model Ultra Librarian CRGH0603F560R CAD Model

Description

The CRGH0603F560R is a chip resistor designed for use in surface mount applications from Neohm.

  • Series: CRGH
  • Composition: Thick Film
  • Resistance: 560 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.2W or 1/5W
  • Package: Tape and Reel (TR)
  • Height: 0.022" (0.55mm)
  • Standard Package: 20,000
  • Temperature Range: -55°C to 155°C
  • Size: 0603 (1608 Metric)
  • Supplier Device Package: 0603
