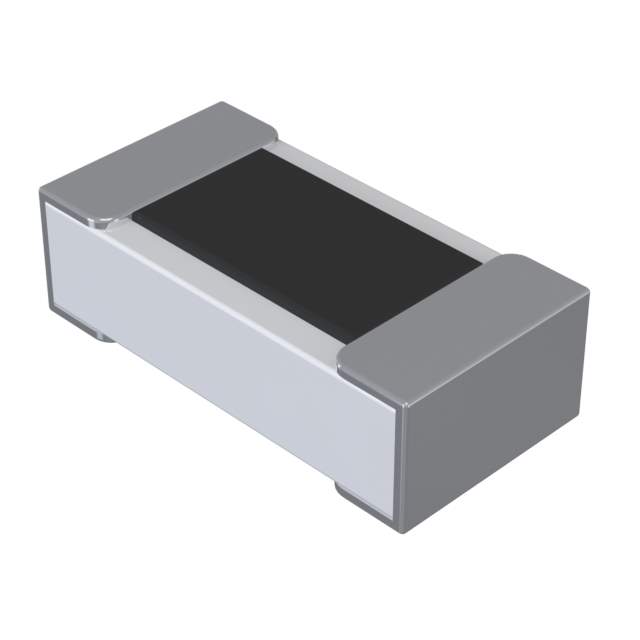

The CRGCQ0402J100K is a thick film chip resistor manufactured by TE Connectivity. This resistor is designed for surface mount applications where space is limited, and a stable resistance value is needed. It features a metal glaze thick film resistive element on a ceramic substrate, ensuring reliable performance in various electronic circuits.

Applications

• Mobile devices
• Wearable electronics
• Small form factor devices
• General-purpose electronics
• LED lighting

Features

• Surface mount technology (SMT)
• Thick film resistive element
• Ultra-compact size (0402 package)
• High stability
• RoHS compliant

Benefits

• Enables miniaturization of electronic devices due to its extremely small size.
• Provides consistent resistance over a range of operating temperatures.
• Suitable for automated assembly processes, reducing manufacturing costs.
• Offers a cost-effective solution for general-purpose resistance requirements.
• Complies with environmental regulations for hazardous substances.

Additional Details

The CRGCQ0402J100K resistor has a resistance value of 100k ohms. TE Connectivity's CRGCQ series is designed for applications where minimizing space is critical. The resistor's tolerance and power rating should be considered when selecting it for a specific application. Typical uses include pull-up/pull-down resistors, voltage dividers, and current limiting in compact electronic devices.
