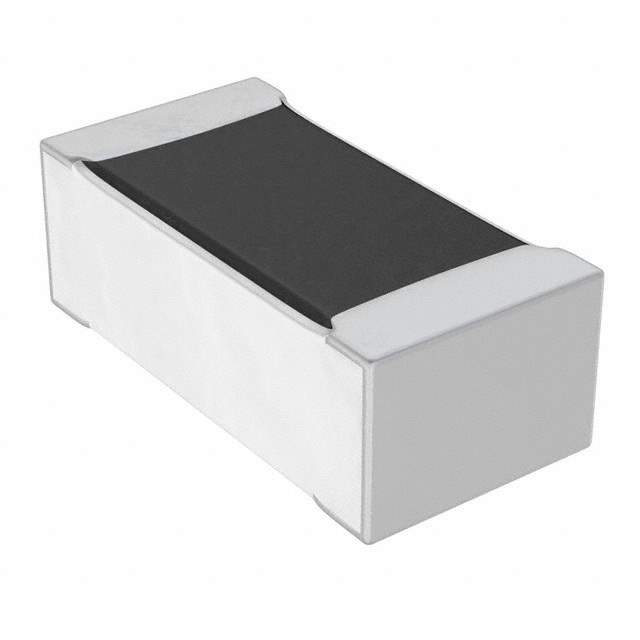

CPF0402B196RE1 Real Image
Same model may have multiple batches, images only for reference.

CPF0402B196RE1

Part No CPF0402B196RE1
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 196 OHM 0.1% 1/16W 0402 / 196 Ohms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CPF, Neohm
Package Tape & Reel
Resistance 196 Ohms
Tolerance ±0.1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.014" (0.35mm)
Number of Terminations 2
Base Product Number CPF0402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 8-1879213-0-ND,8-1879213-0,A102665TR,818792130,A102665CT,A102665DKR
Standard Package 1,000
Win Source Part Number 1047388-CPF0402B196RE1
Ultra Librarian 3D Model Ultra Librarian CPF0402B196RE1 CAD Model

Description

The TE Connectivity Passive Product CPF0402B196RE1 chip resistor is a surface mount resistor that is part of the CPF and Neohm series and is manufactured by TE Connectivity.

  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Failure Rate: Not Specified
  • Type: Thin Film
  • Terminations: 2
  • Resistance: 196 ohms
  • Package/Case: 0402 (1005 metric)
  • Supplier Device Package: 0402
  • Temperature Range: -55°C and 155°C
  • MSL Level: 1 (unlimited)
  • HTSUS: 8533.21.0030
  • Alternative Names: 8-1879213-0-ND, 8-1879213-0, A102665TR, 818792130, A102665CT, and A102665DKR
