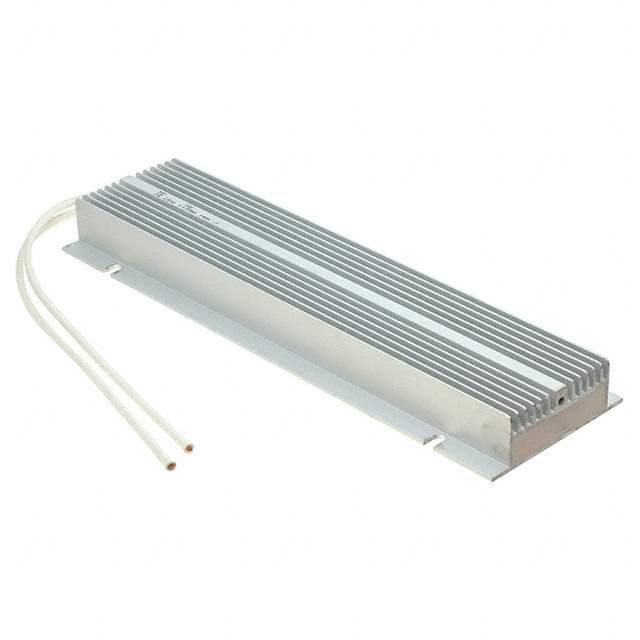

CFH1100A5R6J Real Image
Same model may have multiple batches, images only for reference.

CFH1100A5R6J

Part No CFH1100A5R6J
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 5.6 OHM 5% 2200W / 5.6 Ohms ±5% 2200W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series CFH, CGS
Package Bulk
Resistance 5.6 Ohms
Tolerance ±5%
Power (Watts) 2200W
Composition Wirewound
Features Pulse Withstanding
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 12.598" L x 3.740" W (320.00mm x 95.00mm)
Height - Seated (Max) 1.181" (30.00mm)
Lead Style Wire Leads
Package / Case Rectangular, Wire Leads
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names A137121,1-1623821-1,CFH1100A5R6J-ND
Standard Package 1
Win Source Part Number 1117692-CFH1100A5R6J
Ultra Librarian 3D Model Ultra Librarian CFH1100A5R6J CAD Model

Description

The CFH1100A5R6J is a chassis mount resistor that is manufactured by TE Connectivity Passive Product.

  • Manufacturer: TE Connectivity Passive Product
  • Product Name: CFH1100A5R6J
  • Mounting Type: Chassis Mount
  • Power: 2200W
  • Resistance: 5.6 Ohms
  • Supply and Demand Status: Balanced
  • Popularity: High
  • Win Source Part Number: 1117692-CFH1100A5R6J
