Products specifications Report Issue?

Manufacturer TE Connectivity Passive Product
Packaging Bulk
Resistance 10 kOhms
Tolerance ±5%
Power (Watts) 10W
Composition Wirewound
Temperature Coefficient ±90ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Manufacturer Package Axial
Supplier Device Package Axial
Dimension 0.335" Dia x 1.500" L (8.50mm x 38.10mm)
Number of Terminations 2
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812455-C1010KJL
Ultra Librarian 3D Model Ultra Librarian C1010KJL CAD Model

Description

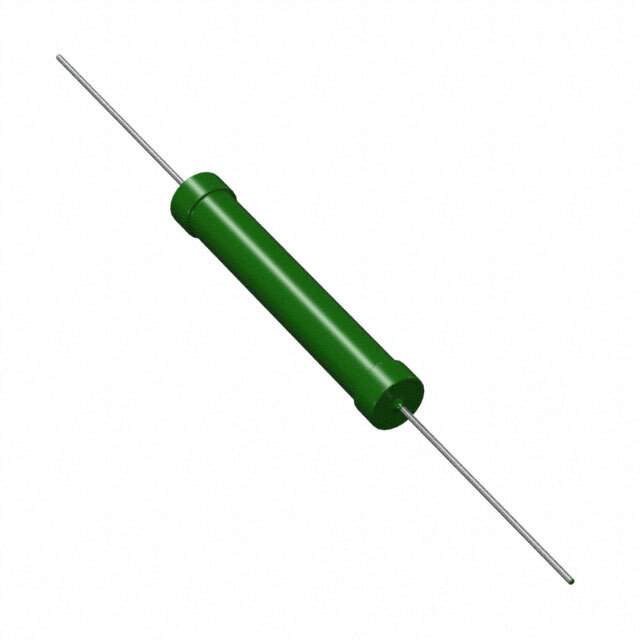

The TE Connectivity Passive Product 812455-C1010KJL from TE Connectivity is a wirewound resistor.

  • Resistance: 10 kOhms
  • Power Rating: 10W
  • Tolerance: ±5%
  • Temperature Coefficient: ±90ppm/°C
  • Supplier Device Package: Axial
  • Operating Temperature Range: -55°C ~ 200°C
  • Dimension: 0.335" Dia x 1.500" L (8.50mm x 38.10mm)
  • Packaging: Bulk
  • Manufacturer Pack Quantity: 100
  • MSL Level: Not Applicable
