Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Status Active
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-22 AWG
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Win Source Part Number 007593-794956-4
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 794956-4 CAD Model

Description

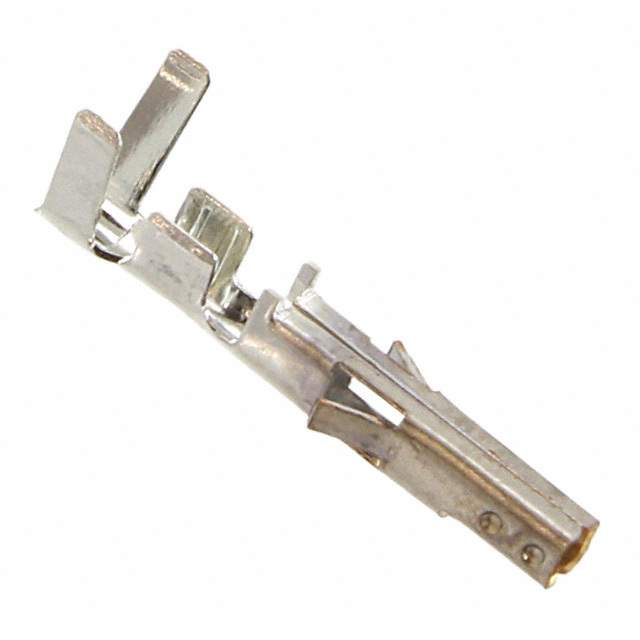

794956-4 Crimp Socket

The 794956-4 crimp socket is designed for applications requiring secure and durable electrical connections. Its precision engineering ensures excellent performance under various conditions.

  • Features:
    • High-tensile strength materials
    • Easy crimping process
    • Enhanced corrosion resistance
  • Benefits:
    • Ensures a stable connection with minimal resistance
    • Saves time with quick installation
  • Applications:
    • Industrial control systems
    • Automotive wiring harnesses
    • Renewable energy systems

The 794956-4 crimp socket is an excellent choice for projects that require dependable electrical connections in demanding environments.
