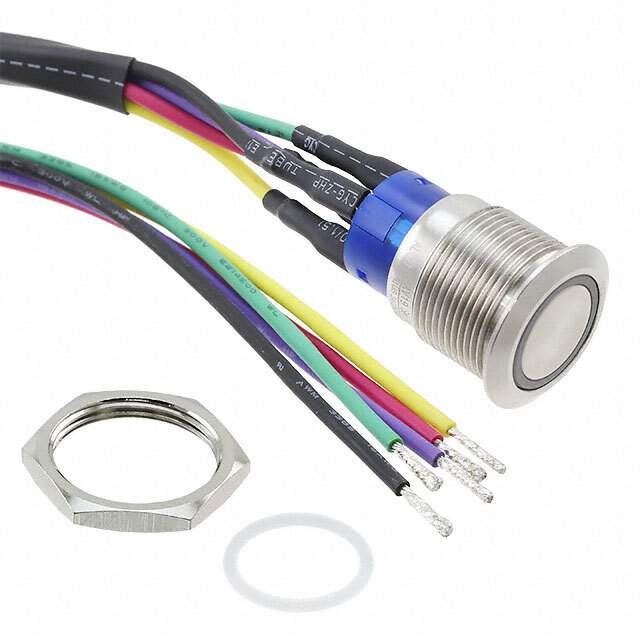

AV1910RA12T5Q04 Real Image
Same model may have multiple batches, images only for reference.

AV1910RA12T5Q04

Part No AV1910RA12T5Q04
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 3A 250V / Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series AV19
Package Box
Mounting Type Panel Mount, Front
Type Anti-Vandal, Illuminated
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC)
Voltage Rating - AC 250 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Silver
Illumination Type, Color LED, Red/Green
Illumination Voltage (Nominal) 12 VDC
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Features Fixed LED Ring
Panel Cutout Dimensions Circular - 19.20mm Dia
Temperature Range - Operating -20°C ~ 55°C
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number AV1910
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 450-2483,3-2317404-0
Standard Package 100
Win Source Part Number 1086862-AV1910RA12T5Q04
Ultra Librarian 3D Model Ultra Librarian AV1910RA12T5Q04 CAD Model

Description

The AV19 series anti-vandal pushbutton switch with wire leads from TE Connectivity ALCOSWITCH Switches is an illuminated switch with a fixed LED ring.

  • Panel Cutout Diameter: 19.20mm
  • Ingress Protection Rating: IP67
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round, Button, Flush
  • Actuator/Cap Color: Silver
  • Illumination Voltage (Nominal): 12VDC
  • Illumination Type and Color: LED, Red/Green
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Temperature Range: -20°C to 55°C
