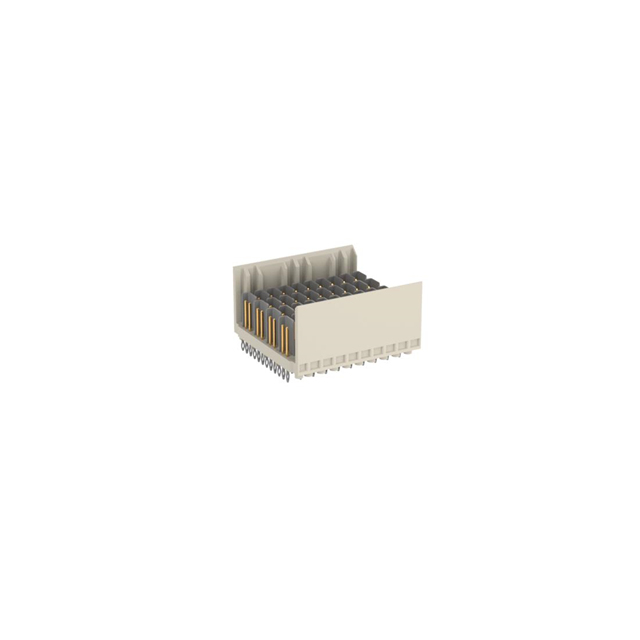

973061 Real Image1 973061 Real Image2
Same model may have multiple batches, images only for reference.
973061 Real Image1 973061 Real Image2
973061 Real Image1 973061 Real Image2
Same model may have multiple batches, images only for reference.

973061

Part No 973061
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description ZD M 4-10 40POS 1.7MM / 120 Connector Header, Male Pins Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Specialized
Mfr TE Connectivity
Series ERMET ZD
Package Tray
Product Status Obsolete
Connector Usage -
Connector Type Header, Male Pins
Connector Style -
Number of Positions 120
Number of Positions Loaded All
Pitch 0.098" (2.50mm)
Number of Rows 12
Number of Columns -
Mounting Type Through Hole
Termination Press-Fit
Contact Layout, Typical -
Features -
Contact Finish Gold
Contact Finish Thickness -
Color -
Current Rating (Amps) -
Material Flammability Rating -
Temperature Range - Operating -55°C ~ 125°C
Voltage Rating -
Base Product Number -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 64 pcs
Win Source Part Number 1381261-973061
Ultra Librarian 3D Model Ultra Librarian 973061 CAD Model

Description

The 1198397 is a 120-position header connector from the ERMET ZD series by TE Connectivity.

  • Positions: 120
  • Series: ERMET ZD
  • Connector Type: Header
  • Application: Backplane Connectors
  • Termination: Press-Fit
  • Pitch: 0.098" (2.50mm)
  • Mounting Type: Through Hole
  • Contact Finish: Gold
  • Temperature Range: -55°C to 125°C
  • Package: Tray
  • Package Quantity: 64 pcs
  • Product Status: Obsolete
