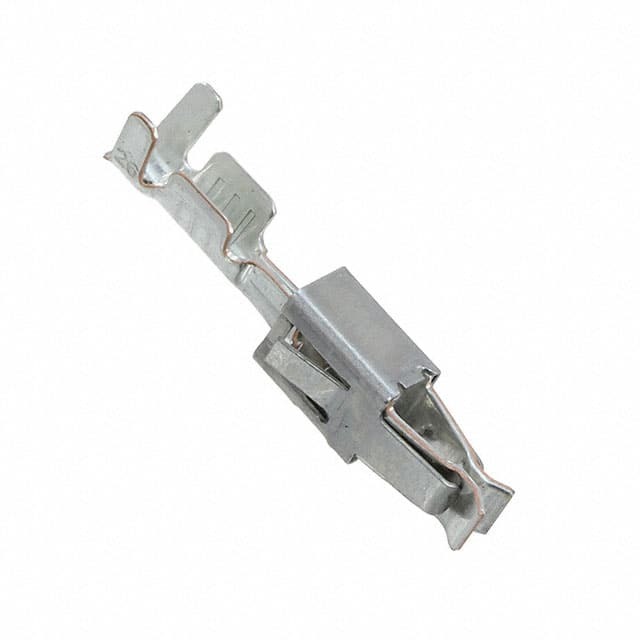

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity
Series Junior Power Timer
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Type Power
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 17-20 AWG
Contact Finish Tin
Base Product Number 964284
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 845415-964284-2
Ultra Librarian 3D Model Ultra Librarian 964284-2 CAD Model

Description

The 845415-964284-2 is a socket contact from the Junior Power Timer series by TE Connectivity.

  • Termination: crimp
  • Wire Gauge: 17-20 AWG
  • Contact Finish: tin
  • Applications: power
  • Series: Junior Power Timer
  • Packaging: tape & reel or cut tape
  • Standard Package Quantity: 4,000 pcs
  • Suitable for: various applications in the field of connectors and interconnects.
