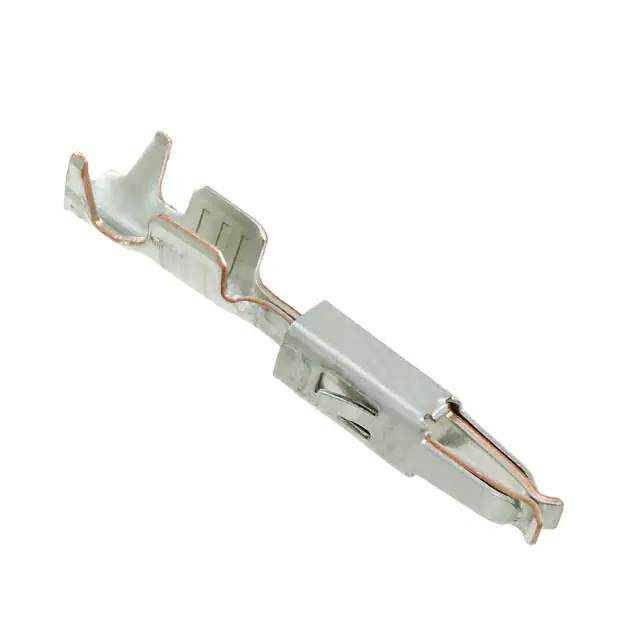

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity
Series Micro Timer II
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 17-20 AWG
Contact Finish Tin
Base Product Number 964263
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 858707-964263-2
Ultra Librarian 3D Model Ultra Librarian 964263-2 CAD Model

Description

The Micro Timer II socket connector is a rectangular connector contact designed for various applications manufactured by TE Connectivity.

  • Contact Finish: Tin
  • Wire Gauge: 17-20 AWG
  • Termination Type: Crimp
  • Pin Configuration: Socket
  • Standard Package: 6,000 pcs
