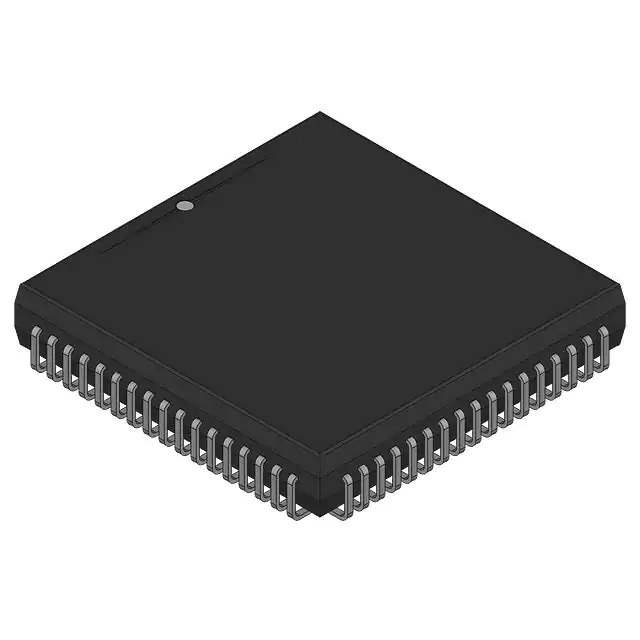

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Intersil
Series 80C286
Package Bulk
Product Status Active
Core Processor 80C286
Number of Cores/Bus Width 1 Core, 16b
Speed 20MHz
Co-Processors/DSP Math Engine; 80C287
Graphics Acceleration No
Voltage - I/O 5V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 68-LCC (J-Lead)
Supplier Device Package 68-PLCC (24.23x24.23)
Standard Package 32 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 97089-CS80C286-20
Ultra Librarian 3D Model Ultra Librarian CS80C286-20 CAD Model

Description

CS80C286-20 Microprocessor

The CS80C286-20 is a robust microprocessor designed to deliver reliable performance for a range of computing applications. With a clock speed of 20 MHz, this microprocessor is ideal for use in industrial automation systems, embedded systems, and vintage computer restorations.

Applications/Projects:

  • Embedded Control Systems
  • Industrial Automation
  • Retro Computing Projects
  • Educational Electronics Kits

Features and Benefits:

  • Compatibility: Fully compatible with 80286 generation systems
  • Performance: Operates at a clock speed of 20 MHz
  • Versatility: Supports a broad range of software applications
  • Energy Efficiency: Optimized power consumption for extended operation

This device offers a balance between performance and power efficiency, making it well-suited for both modern applications and legacy system support.
