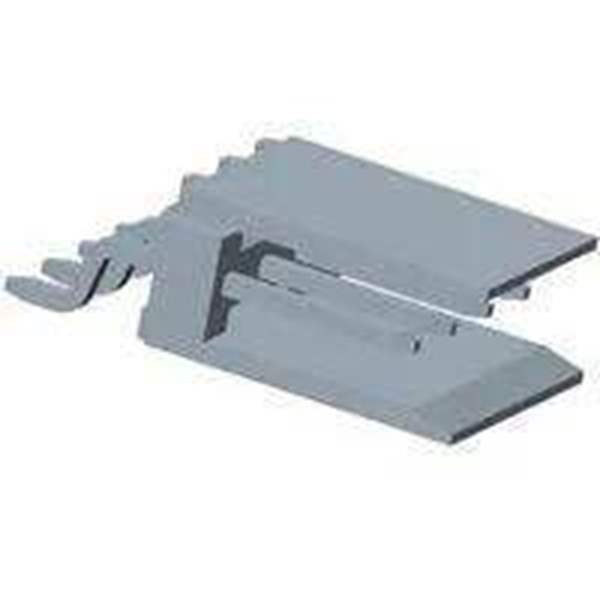

Part No 953820-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 2.54MM / Connector Header Surface Mount, Right Angle 4 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series HE13/HE14
Package Tape & Reel (TR)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.266" (6.75mm)
Insulation Height 0.200" (5.08mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -65°C ~ 125°C
Insulation Color Natural
Contact Finish Thickness - Post 98.4µin (2.50µm)
Base Product Number 953820
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 3,500
Win Source Part Number 1041756-953820-1
Ultra Librarian 3D Model Ultra Librarian 953820-1 CAD Model

Description

The 953820-1 is a male pin header connector manufactured by TE Connectivity AMP Connectors.

  • Positions: 4
  • Connection Type: Board to Cable/Wire
  • Mounting Type: Surface Mount, Right-Angle
  • RoHS Compliant: Yes
